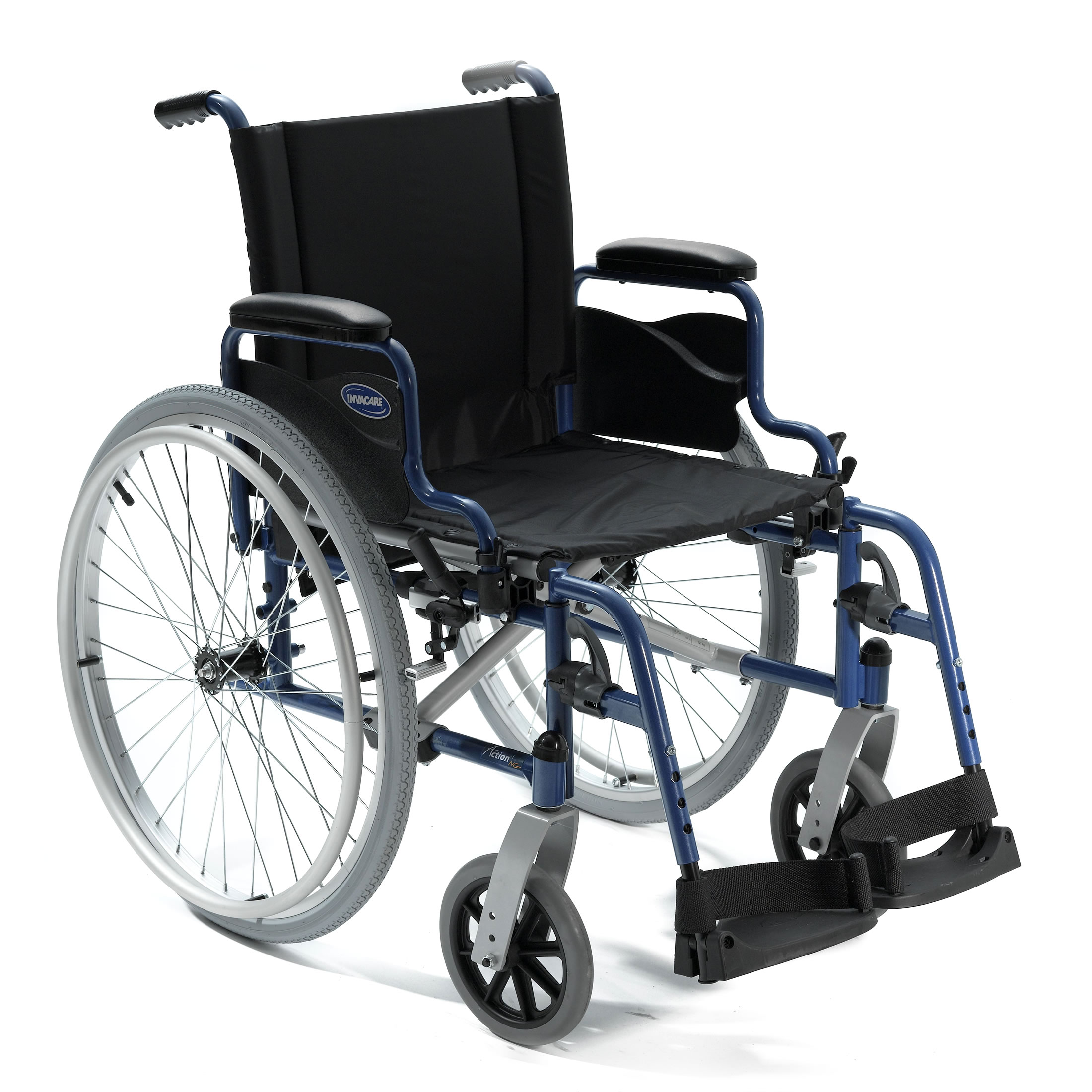

inspirational|A1NG BE03.jpg|Steel and foldable Manual wheelchair Invacare Action 1 NG
Discontinued product Discontinued product

Discover our new manual wheelchair, click here

benefit|A1NG BE05.jpg|Manual wheelchair Invacare Action 1 NG easy to transport and store
benefit|A1NG BE01.jpg|Steel and foldable Manual wheelchair Invacare Action 1 NG
benefit|A1NG BE05.jpg|Manual wheelchair Invacare Action 1 NG easy to transport and store
benefit|A1NG BE01.jpg|Steel and foldable Manual wheelchair Invacare Action 1 NG
benefit|A1NG BE05.jpg|Manual wheelchair Invacare Action 1 NG easy to transport and store
benefit|A1NG BE01.jpg|Steel and foldable Manual wheelchair Invacare Action 1 NG
Multi rear wheel positions
Multi rear wheel positions

2 different seat heights
are possible with the
standard rear wheel plate
and additional ones with
the optional rear wheel
plate, both in amputee or

Anti-tippers
Anti-tippers

Provide extra stability on
slopes or uneven ground.

Attendant hub brakes
Attendant hub brakes

Attendant operated hub
brakes are available and
include push to lock
brakes.

Anti-barrier
Anti-barrier

Allow users to pass
through narrow doors
by removing the rear
wheels.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

405 / 430 / 455 / 480 / 505 mm

Seat depth

Seat depth

425 / 475 mm

Seat angle

Seat angle

Seat height

Seat height

450 / 500 mm

Backrest angle

Backrest angle

0° / 0° - 30°

Backrest height

Backrest height

410 mm

Front frame angle

Front frame angle

80° / 0° to 80°

Length of footrests

Length of footrests

330 - 455 mm

Armrest height

Armrest height

240 mm

Driving unit width

Driving unit width

Seat width + 215 / 205 mm2

Total width folded

Total width folded

315 / 305 mm

Total length

Total length

1045 - 1085 mm

Total length without footrests

Total length without footrests

815 / 855 mm

Total height

Total height

865 / 915 mm

Max. safe slope

Max. safe slope

22°

Turning diameter

Turning diameter

880 mm

Max. User weight

Max. User weight

127 kg

Total weight

Total weight

16.5 / 18.6 / 18.8 kg

The heaviest part

The heaviest part

10.5 / 11.5 / 12.9 kg

Frame colour

Frame colour

Silver Grey, Silver Grey / Night Blue

Colour (other)

Colour (other)

Upholstery: Black Nylon, Black Vinyl

Colour (other)

Comment

1. With Dual Handrim 2. With drum brakes
