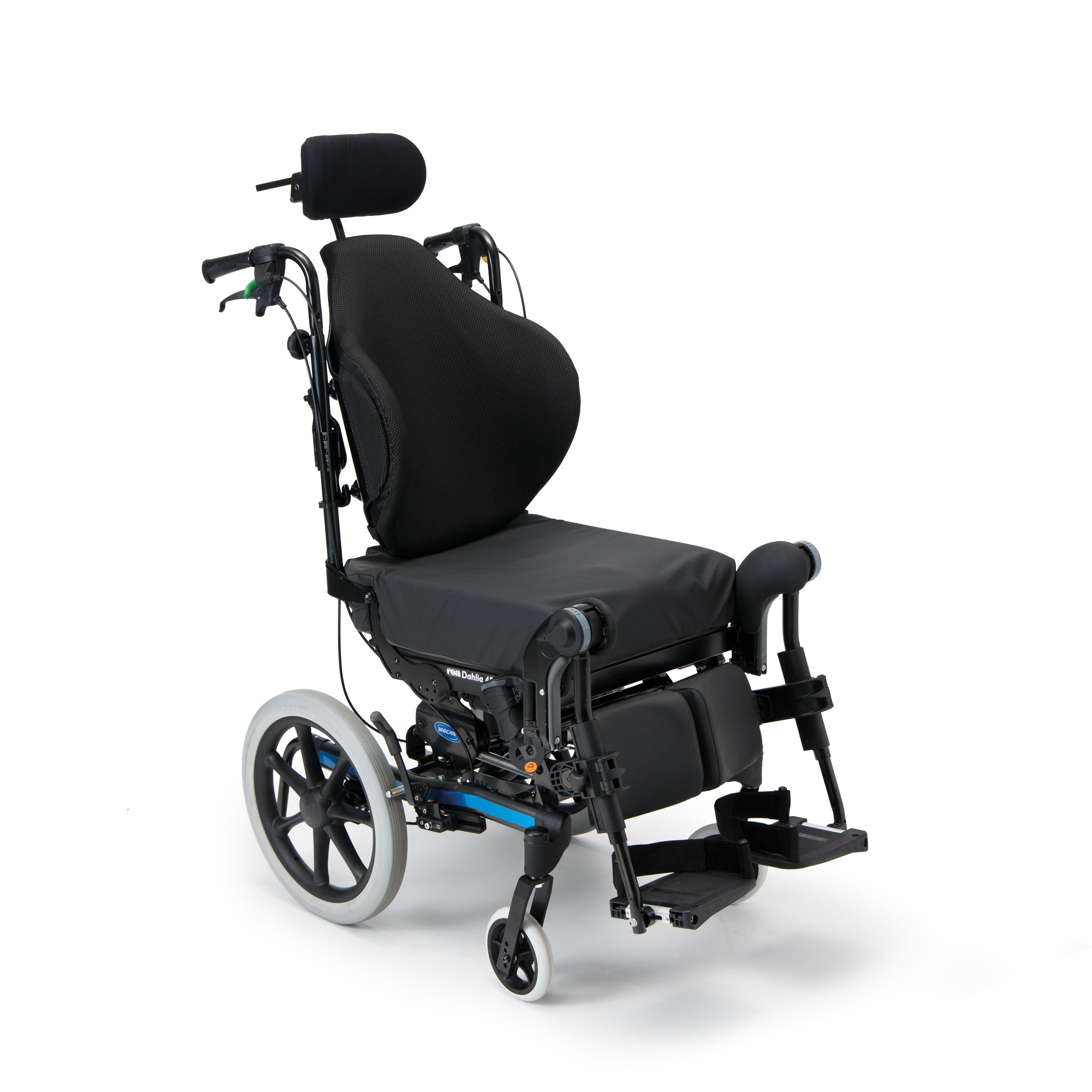

A myriad of benefits all in one. The Dahlia 45° Matrx Manual Positioning Wheelchair is designed for users with pressure relief needs. Tilting is made easy thanks to the smooth mechanisms at the pneumatic cylinders, which require little effort. This modular seat wheelchair is very easy to handle and has a small footprint thanks to its compact chassis.

Comfortable propelling and compact frame
Comfortable propelling and compact frame
Rear wheels are closer to the body of the user which increases comfort and enables the Dahlia to be easily propelled. Allows the chair to easily pass through narrow doorways in houses, lifts, shops
Individualized seat height adjustment
Individualized seat height adjustment
Low seat to floor height gives the user the possibility to foot propel, Dahlia brinks a large range of adjustment from 325 to 505 mm to meet user requirements.
Tilt and recline progressional image
Dual Stability System (DSS)
The Dual Stability System (DSS) allows for body length compensation and so minimises shear, friction and compression. When the chair goes into and out of tilt and recline, the head, neck and trunk of the user will remain in the same position on the headrest and backrest, eliminating any sliding or movement.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

440 to 540 / 490 to 590 mm

Seat depth

Seat depth

430 to 500 mm

Seat angle

Seat angle

0° to 45°

Seat height

Seat height

330 to 500 mm

Backrest angle

Backrest angle

0° to 30°

Backrest height

Backrest height

500 to 800 mm (without seat cushion)

Length of footrests

Length of footrests

330 to 500 mm

Total width

Total width

+160 mm (16") | +180 mm (24")

Total length

Total length

900 - 1180 mm

Total height

Total height

850 to 1250 mm

Max. slope for use of parking brake

Max. slope for use of parking brake

Max. User weight

Max. User weight

135 kg

Total weight

Total weight

> 35 kg

Transport weight

Transport weight

21 / 25 kg

Crash tested

Crash tested

Colour (other)

Colour (other)

Frame color: Black | Reflective strip color: Gray / Blue / Champagne / Red / Petrol green
