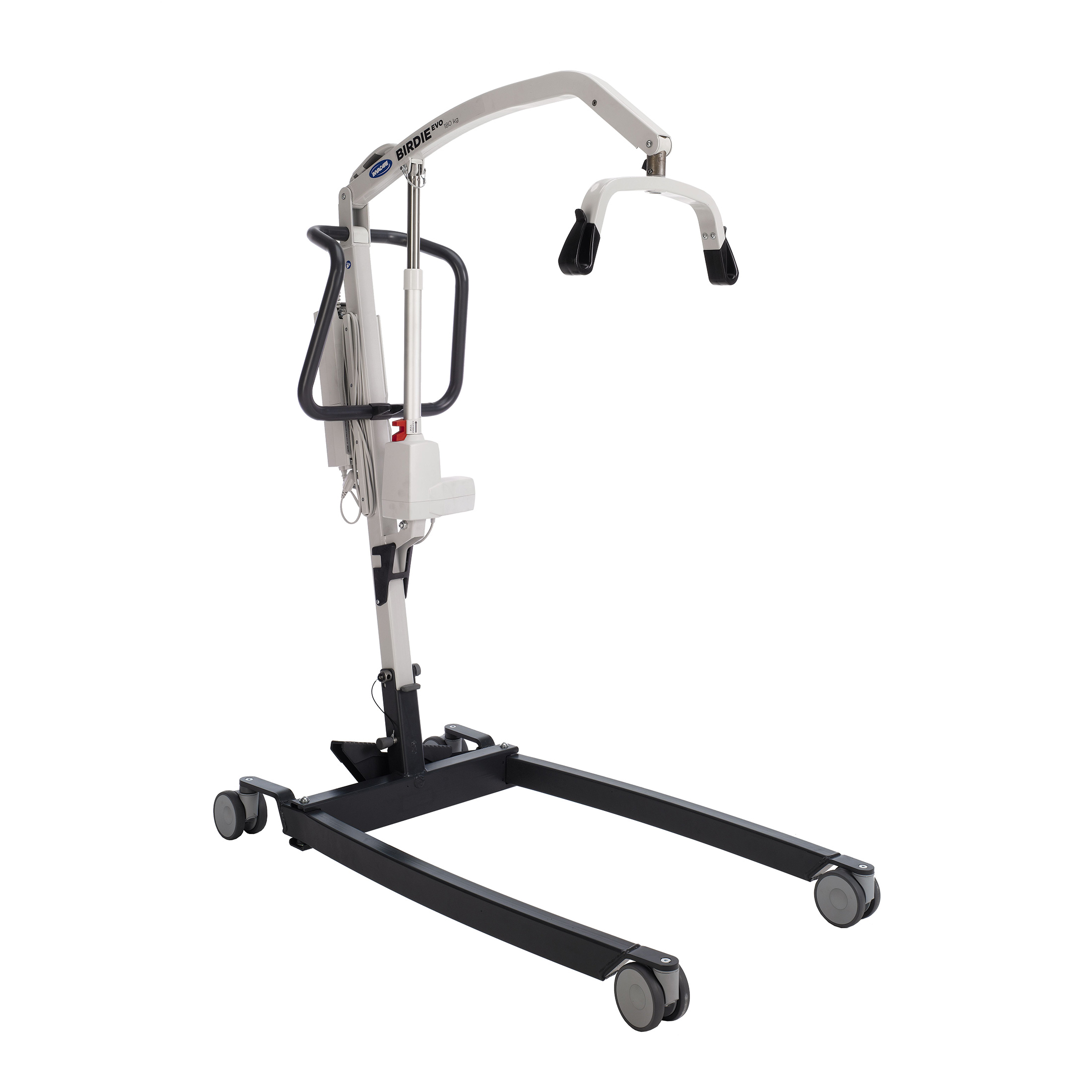

inspirational|birdie-evo.jpg|The Invacare Birdie Evo patient lifter

The Invacare Birdie EVO and Birdie EVO Compact are specially designed to offer a comfortable lift and transfer to or from beds, chairs, or even the floor. Ideal for use in domestic and residential care environments, the hoists are designed to fold and unfold easily without the need for tools.

Birdie EVO provides comfort and ease of use. Invacare’s patient lifting equipment maximises space for the client even when the hoist is in its highest position. This gives an ergonomic lift, and transfer, as the client can be easily rotated 360°, which makes positioning much easier for the carer.

feature|BIRDIE-EVO-STD-MAN-CV01.jpg|The Invacare Birdie Evo patient lifter
feature|BIRDIE-EVO-STD-MAN-CV28.jpg|The Invacare Birdie Evo patient lifter
feature|608C5812_unedited_456.jpg|The Invacare Birdie Evo patient lifter
feature|BIRDIE-EVO-COMPACT-BE03.jpg|The Invacare Birdie Evo patient lifter
feature|BIRDIE-EVO-STD-ELEC-BE89.jpg|The Invacare Birdie Evo patient lifter
feature| BIRDIE EVO STD ELEC CV33.jpg|The Invacare Birdie Evo patient lifter
Birdie EVO 1
Birdie EVO 2
Birdie EVO 3
feature|BIRDIE-EVO-STD-MAN-CV01.jpg|The Invacare Birdie Evo patient lifter
feature|BIRDIE-EVO-STD-MAN-CV28.jpg|The Invacare Birdie Evo patient lifter
feature|608C5812_unedited_456.jpg|The Invacare Birdie Evo patient lifter
feature|BIRDIE-EVO-COMPACT-BE03.jpg|The Invacare Birdie Evo patient lifter
feature|BIRDIE-EVO-STD-ELEC-BE89.jpg|The Invacare Birdie Evo patient lifter
feature| BIRDIE EVO STD ELEC CV33.jpg|The Invacare Birdie Evo patient lifter
Birdie EVO 1
Birdie EVO 2
Birdie EVO 3
feature|BIRDIE-EVO-STD-MAN-CV01.jpg|The Invacare Birdie Evo patient lifter
feature|BIRDIE-EVO-STD-MAN-CV28.jpg|The Invacare Birdie Evo patient lifter
feature|608C5812_unedited_456.jpg|The Invacare Birdie Evo patient lifter
feature|BIRDIE-EVO-COMPACT-BE03.jpg|The Invacare Birdie Evo patient lifter
feature|BIRDIE-EVO-STD-ELEC-BE89.jpg|The Invacare Birdie Evo patient lifter
feature| BIRDIE EVO STD ELEC CV33.jpg|The Invacare Birdie Evo patient lifter
Birdie EVO 1
Birdie EVO 2
Birdie EVO 3

Ease of handling is another notable feature – simple to fold, unfold, and dismantle without tools. Handling the hoist has been made as smooth and easy as possible – the hoist can easily be folded and unfolded without the need for tools.

Hoists take up minimal space when stored and are easy to push and transport. If required, the mast and boom can also be easily detached from the base for easy transportation without any tools required.

The Birdie EVO is CE-certified in line with the Medical Device Regulation 2017/745. The hoists have been rigorously tested by Invacare and the German TÜV institute – an accredited external body. This is to ensure that the hoists comply with EN ISO 10535 (the European standard for hoists).

Key features include:

  • Long boom – high user comfort:  The client can easily be rotated and positioned. Reduced risk of injury to the knees.
  • Easy to fold and dismantle: Allows for ease of transportation and storage. No tools required when folding/unfolding or when dismantling the hoist.
  • Snap lock: It features a nap lock that ensures optimal security.
  • Emergency stop, lowering, and integrated charger: Manual or electric emergency lowering (compact version only electric lowering). The control box is supplied with a detachable or fixed battery.
  • Manual leg spread: Users can simply step on the pedal to adjust the leg spread.
  • Mounted spreader bar: This Allows correct and safe positioning of the spreader bar.
U-Shape Spreader bar
U-Shape Spreader bar

Giving more space for the client's head and enabling to maintain interaction between client and carer

SMARTLOCK connection
SMARTLOCK connection

Simplifying and securing the locking with a quick release mechanism of the spreader bar

Foldable or fixed mast
Foldable or fixed mast

Both are detachable in 2 parts without tools, making it simple to transport

Perfect hook design
Perfect hook design

Attach slings easily with one hand on a larger surface for more stability

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Safe working load

Safe working load

180 kg

Base length

Base length

1220 mm

Base width

Base width

640 mm

Inside width legs opened

Inside width legs opened

1020 mm

Min - Max height at sling hook-up

Min - Max height at sling hook-up

415 - 1660 mm

Turning diameter

Turning diameter

1400 mm

Total weight

Total weight

40 kg

Ground clearance

Ground clearance

35 mm

Height of legs

Height of legs

115 mm

Height when folded

Height when folded

455 mm

Lifting  speed

Lifting speed

30 mm/s

Working ability (lifts per charge)

Working ability (lifts per charge)

40 cycles

Frame colour

Frame colour

Light Grey: mast, boom and lifting arm RAL: 7035 Anthracite Grey: base, legs and push bar RAL: 7016

Frame colour

Comment

Lithium-Ion battery option available. All measurements are taken with 100 mm castors (125 mm on the rear for XPLUS), a 2 point spreader bar and 80 kg person. For 75 mm castors, reduce height measurements by 15 mm. All measurements are taken with a tolerance of +-3%.
