Orca lifestyle image

Aquatec Orca features an impressive weight limit of 140 kg, increased legroom for deeper and more relaxed bathing, among other functions. Our Aquatec Orca range provides superior quality and durable bath lifts that are designed to offer comfort, safely and reassurance to those most in need of support as they bathe. The product incorporates increased legroom, ease of disassembly and an ergonomic floating hand control that contains a highly efficient lightweight battery.

The bathing aid also features a textured seating surface that allows use without covers if desired. The side flaps are hinged flush to the main seating surface and enable comfortable and safe side transfers, without entrapment of skin.

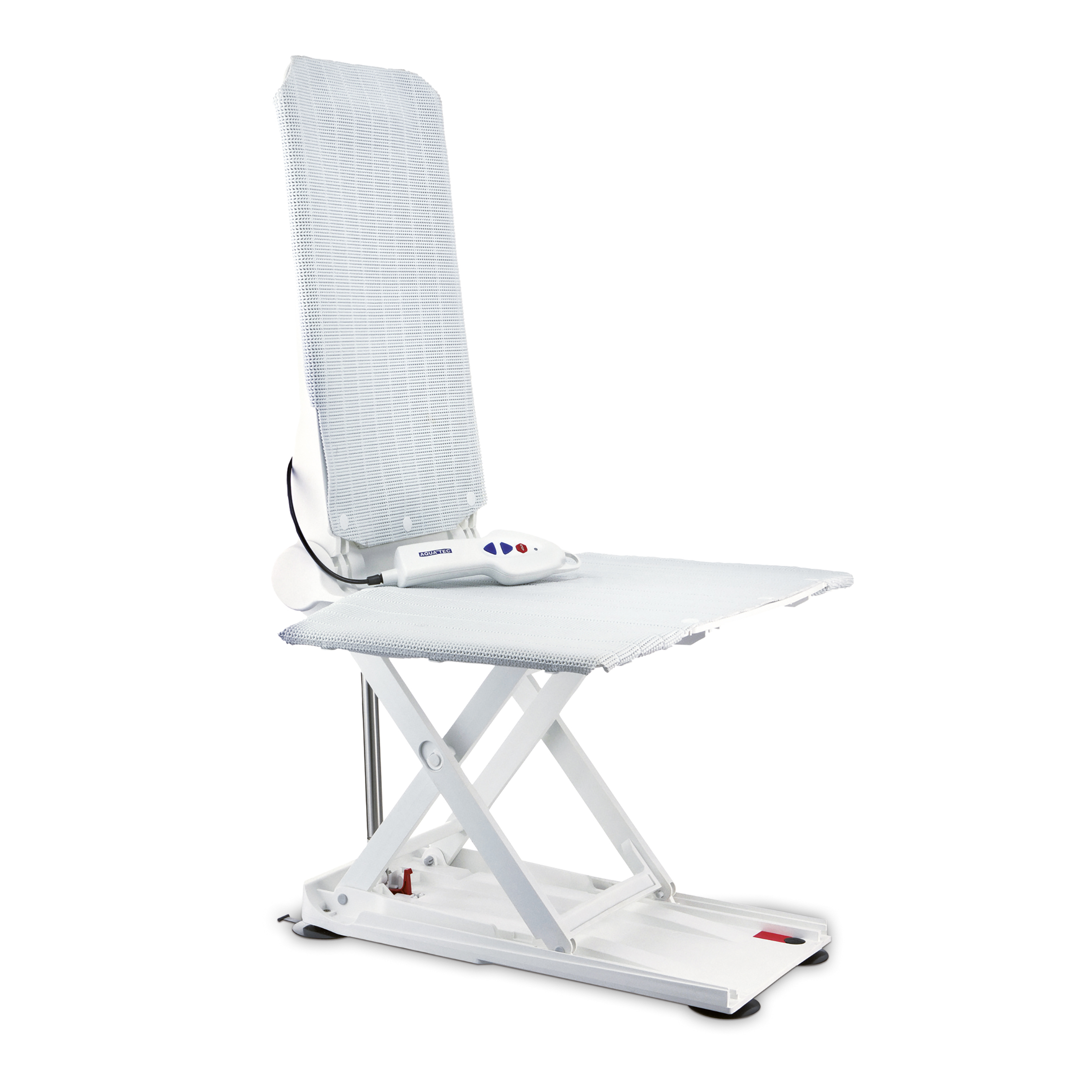

Aquatec Orca bath lift
Aquatec Orca bath lift hand control
Aquatec Orca 1
Aquatec Orca 2
Aquatec Orca 3
Aquatec Orca 4
Aquatec Orca 5
Aquatec Orca 6
ORCA 2014 OF04
Aquatec Orca bath lift
Aquatec Orca bath lift hand control
Aquatec Orca 1
Aquatec Orca 2
Aquatec Orca 3
Aquatec Orca 4
Aquatec Orca 5
Aquatec Orca 6
ORCA 2014 OF04
Aquatec Orca bath lift
Aquatec Orca bath lift hand control
Aquatec Orca 1
Aquatec Orca 2
Aquatec Orca 3
Aquatec Orca 4
Aquatec Orca 5
Aquatec Orca 6
ORCA 2014 OF04

The backrest and base section can then be removed from the bath with ease. The two sections fit neatly into one another to give an extremely compact size for storage. Overall, the Invacare Aquatec Orca is comfortable, safe and highly efficient. The design keeps users in mind, giving a convenient and straightforward bathing experience.

The reinforced scissor mechanism on the Orca range combines safe lifting with a compact construction while the minimum seat height of just 60 mm allows ample room for a deeper and more comfortable bath.

Key Features:

  • Reclining backrest: Individually adjustable backrest for secure positioning.
  • Height adjustable headrest: For the optional safe support of the head and neck area. Recommended in conjunction with the special backrest.
  • Custom-built side flaps: The Aquatec Orca is optionally available with custom-built side flaps that facilitate transfer from the lift.
  • Safety belts: Aquatec Orca comes with an optional safety belt to hold the user securely.
  • Side flap deflectors: It is an option and to be used for hand grips in the bathtub. The side flap deflector can also be shortened when required.
Textured seating surface
Textured seating surface

The Orca has a textured surface allowing use without covers if desired.

Two-piece design
Two-piece design

When pushed forward the Orca’s backrest folds down and automatically unlocks. The backrest and base section can then be removed from the bath with ease.

Easy to clean
Easy to clean

The open, clean-cut design of the Orca combines with its smooth surfaces to offer effortless cleaning.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Seat width

Seat width

375 mm (without side flaps) 715 mm (with side flaps)

Seat depth

Seat depth

590 mm

Seat height

Seat height

420 mm (max) - 60 mm (min)

Width of backrest

Width of backrest

360 mm

Height of backrest

Height of backrest

665 mm

Base area

Base area

580 x 295 mm

Backrest can be reclined by up to

Backrest can be reclined by up to

40° [ORC] & [ORCX]

Total depth

Total depth

650 mm (backrest upright) - 920 mm (backrest reclined) [ORC] & [ORCX]

Total height

Total height

1075 mm

Total height with backrest

Total height with backrest

1075 mm

Max. User weight

Max. User weight

140 kg [ORC] | 170 kg [ORCX]

Weight

Weight

10.8 kg (without hand control) [ORC] | 11.6 kg (without hand control) [ORCX]

Cover thickness

Cover thickness

3 mm

Colour (other)

Colour (other)

White

Colour (other)

Comment

Please note [ORC] refers to Aquatec Orca and [ORCX] refers to Aquatec Orca XL version.
4.2 kg (Backrest weight) - 0.4 kg (Hand control weight)

Orca Height-adjustable headrest

Height adjustable headrest

For the safe support of the head and neck area. Always recommended in conjunction with the special backrest. All parts for the headrest assembly are included.

Orca Stopper/Abduction Unit

Stopper/abduction unit

Stopper abduction unit to prevent slipping off the seat surface. Available for all battery-driven bath lifters.

Orca Height Adaptors

Height adaptors

The Orca can be adapted to suit a full range of bath heights. The 2, 4 or 6 cm height adapters can be quickly fitted to the bath lift base if needed.

Orca Side Flap Deflectors

Side flap deflectors

To be used for hand grips in the bathtub. The side flap deflector can also be shortened when required.

Orca Transportation Bag

Transportation bag

Useful and light transportation bag for Orca with integrated wheels for easy transport, e.g. when going on vacation.
