Ocean  Ergo 24'' Lifestyle
Discontinued product Discontinued product

DISCOVER THE REPLACEMENT AQUATEC OCEAN ERGO HERE

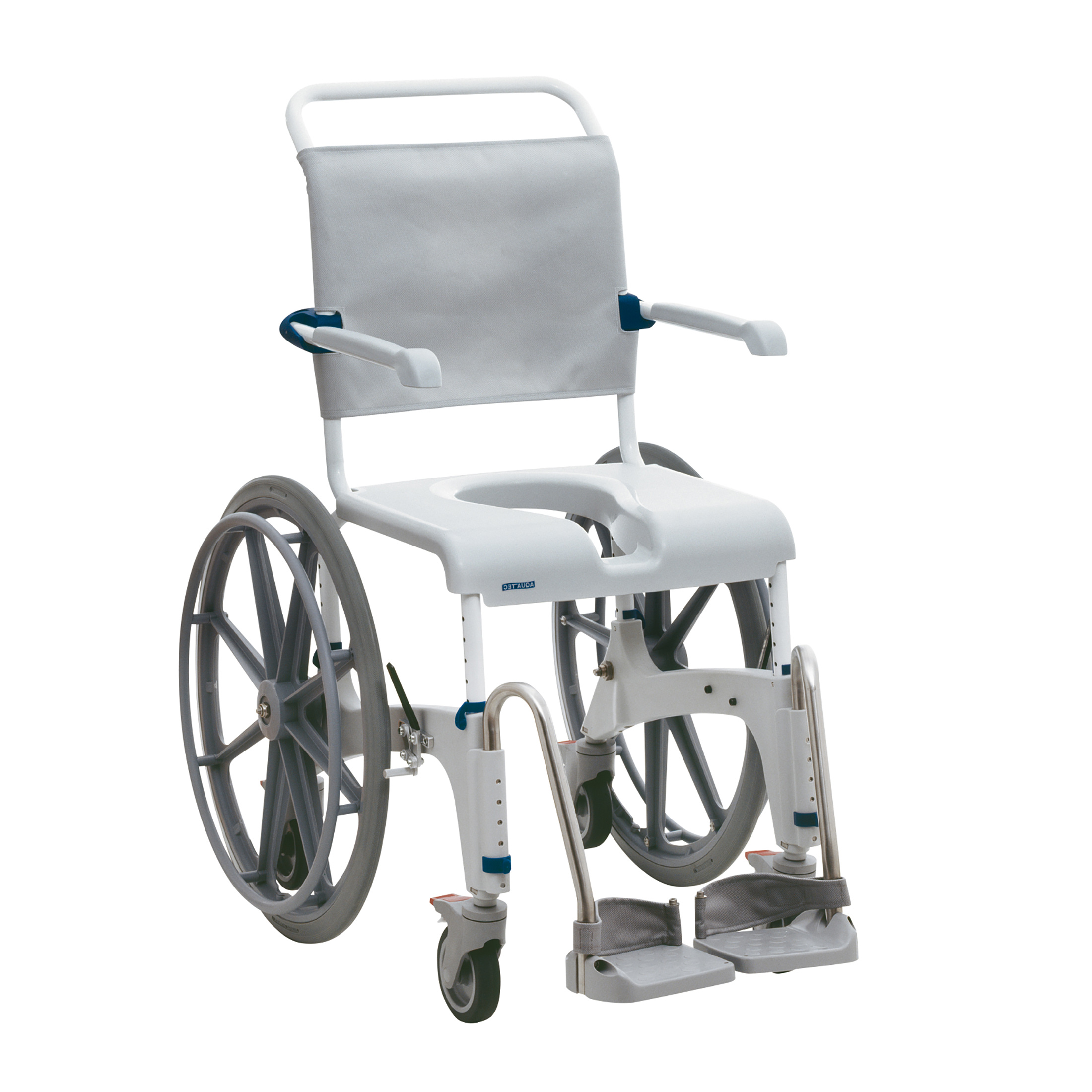

Aquatec Ocean 24'' shower chair
Aquatec Ocean 24'' shower chair 2
Aquatec Ocean 24'' shower chair 3
Aquatec Ocean 24'' shower chair 4
Aquatec Ocean 24'' shower chair 5
Aquatec Ocean 24'' shower chair 6
Aquatec Ocean 24'' shower chair
Aquatec Ocean 24'' shower chair 2
Aquatec Ocean 24'' shower chair 3
Aquatec Ocean 24'' shower chair 4
Aquatec Ocean 24'' shower chair 5
Aquatec Ocean 24'' shower chair 6
Aquatec Ocean 24'' shower chair
Aquatec Ocean 24'' shower chair 2
Aquatec Ocean 24'' shower chair 3
Aquatec Ocean 24'' shower chair 4
Aquatec Ocean 24'' shower chair 5
Aquatec Ocean 24'' shower chair 6
Easy disassembly
Easy disassembly

Easy disassembly for mobile use, e.g. on travels.

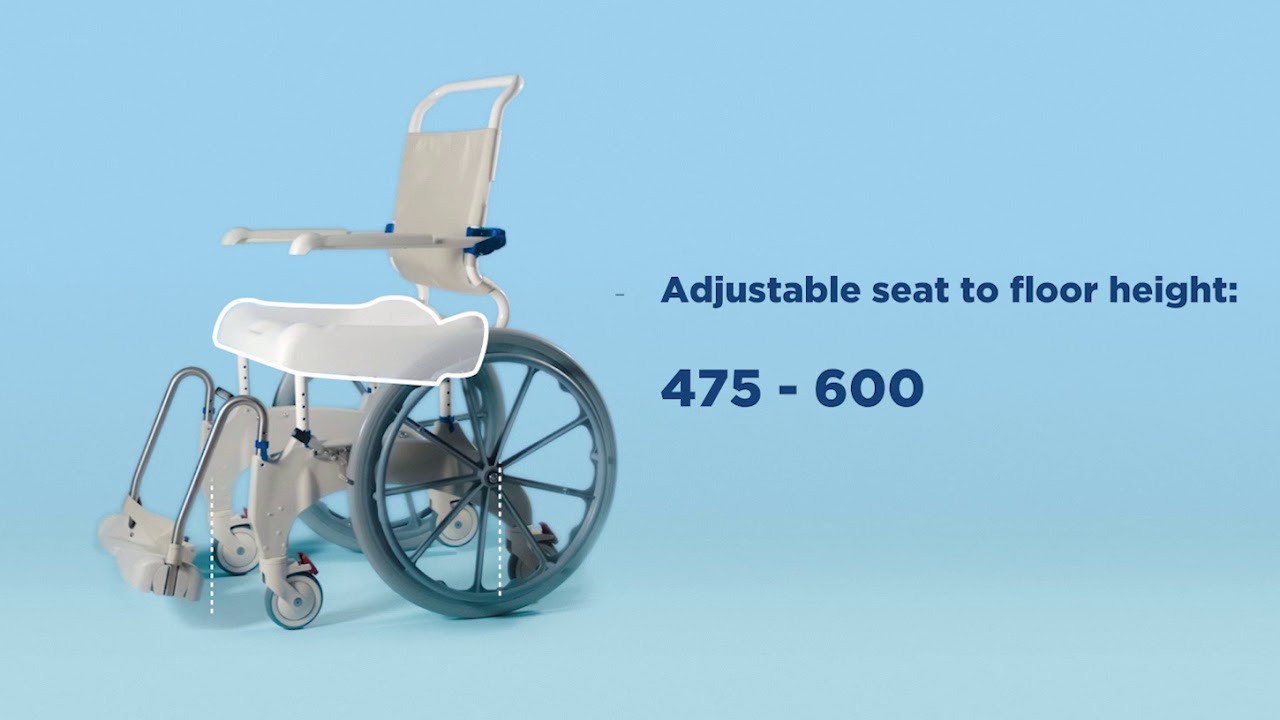

Adjustable seat height
Adjustable seat height

Individually adjustable seat height: no tools required.

Self propelling
Self propelling

Self-propel model with 24” wheels, quick-release axles and four castors.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Article no. / Item code

Article no. / Item code

1534329

Seat width

Seat width

480 mm

Seat depth

Seat depth

450 mm; 475 - 600 mm

Total width

Total width

675 mm

Total depth

Total depth

1060 mm

Total height without adjustable headrest

Total height without adjustable headrest

946 - 1094 mm

Height to armrests

Height to armrests

680 - 850 mm

Height, ground to lower seat edge: with holder for toilet pan without holder for toilet pan

Height, ground to lower seat edge: with holder for toilet pan without holder for toilet pan

390 - 520 mm 410 - 540 mm

Height, footrests to seat

Height, footrests to seat

255 - 495 mm

Width, cut out in seat plate

Width, cut out in seat plate

205 mm

Depth, cut out in seat plate

Depth, cut out in seat plate

320 mm

Depth, cut out in seat plate

Adjustment range, inner dimension

25 mm

Depth without footrests

Depth without footrests

855 mm

Footplate depth

Footplate depth

155 mm

Max. User weight

Max. User weight

150 kg

Weight

Weight

19,5 kg

Diameter drive wheels

Diameter drive wheels

24” (610 mm)

Wheel diameter / Castors diameter

Wheel diameter / Castors diameter

5" (127 mm)

Width between the 24" wheels

Width between the 24" wheels

540 mm

Colour (other)

Colour (other)

White

Test & Certificates (1)
