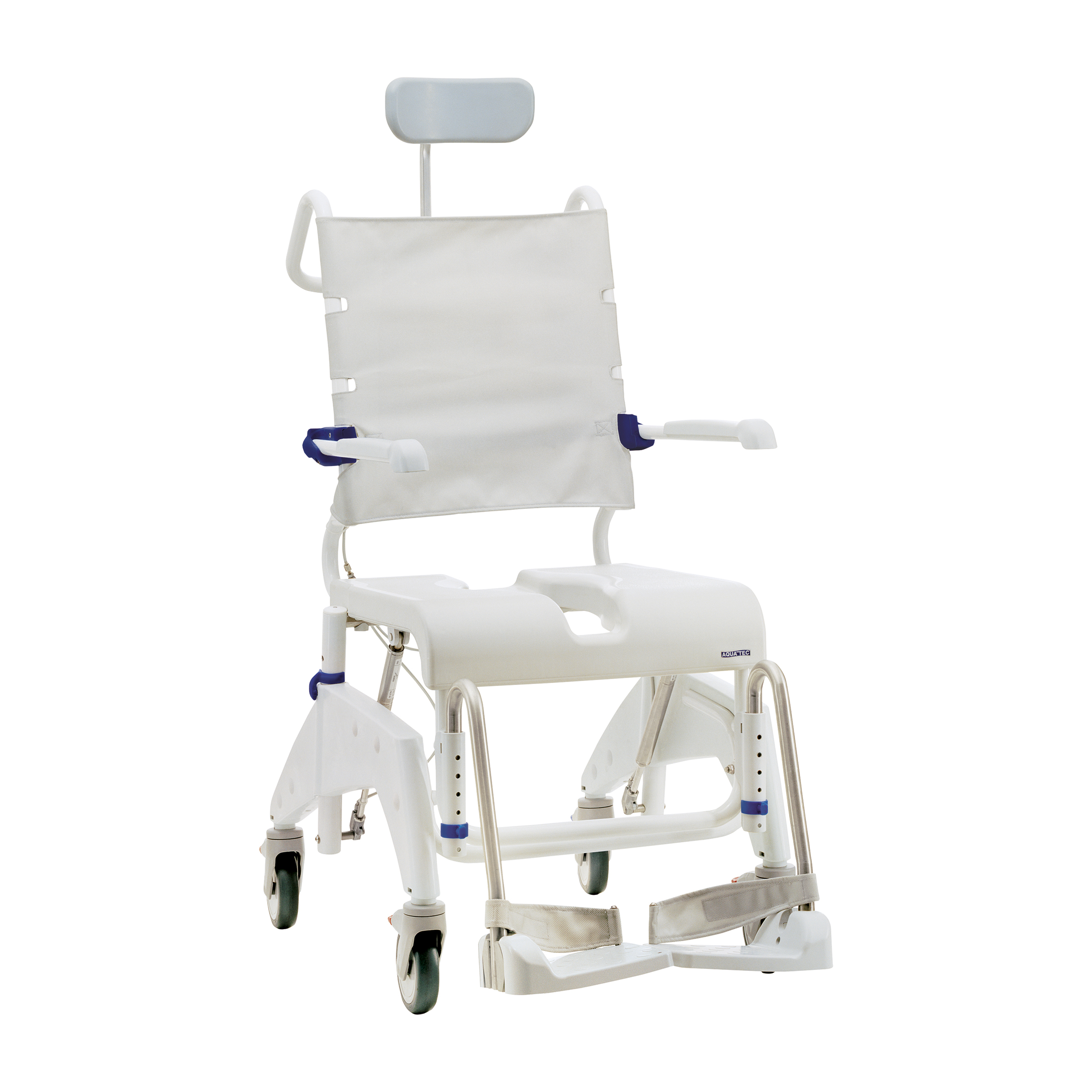

Aquatec Ocean VIP, Ocean VIP XL, Ocean DUAL VIP

Discontinued product Discontinued product

DISCOVER THE REPLACEMENT HERE


OCEANVIP CV01
OCEANVIP CV02
OCEANVIP CV01
OCEANVIP CV02
OCEANVIP CV01
OCEANVIP CV02
Headrest included
Headrest included

The comfortable headrest can be adjusted steplessly in a wide horizontal and vertical direction

Directional lock
Directional lock

One of the four high-quality castors is equipped with a directional lock to help pushing the chair along straight hospital-floors.

Height adjustable armrests
Height adjustable armrests

The armrests can be attached to the backrest in two different heights.

Adjustable backrest cover
Adjustable backrest cover

The machine washable backrest cover can be adjusted in a wide range to achieve additional lateral support even without accessories.

Soft seat with key cut
Soft seat with key cut

An even better seating comfort for sensitive patients can be achieved with the soft seat.

Armrest fixation
Armrest fixation

The automatically engaging armrest fixation keeps the armrests locked in up and down position.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Article no. / Item code

Article no. / Item code

1470000 / 1470712 / 1470713 [VIP] | 1470788 [VIPX] | 1470829 [VIPD]

Seat width

Seat width

500 mm

Seat depth

Seat depth

450 mm

Seat height

Seat height

510 - 610 mm

Tilt angle seat

Tilt angle seat

0° - 35 °

Tilt angle back

Tilt angle back

10° - 50° [VIPD]

Total width

Total width

595 mm [VIP ] | 625 mm [VIPX] & [VIPD]

Total depth

Total depth

1060 mm

Height, seat to armrest

Height, seat to armrest

215 - 245 mm

Width between armrests

Width between armrests

475 mm [VIP] & [VIPD] | 555 mm [VIPX]

Total height without adjustable headrest

Total height without adjustable headrest

1085 - 1185 mm

Height to armrests

Height to armrests

720 - 860 mm

Height, ground to lower seat edge: with holder for toilet pan without holder for toilet pan

Height, ground to lower seat edge: with holder for toilet pan without holder for toilet pan

420 - 520 mm 440 - 540 mm

Height, floor to seat plate

Height, floor to seat plate

with holder for toilet pan: 420 - 520 mm; without holder for toilet pan: 440 - 540 mm

Height, footrests to seat

Height, footrests to seat

345 - 465 mm

Width, cut out in seat plate

Width, cut out in seat plate

205 mm

Depth, cut out in seat plate

Depth, cut out in seat plate

320 mm

Depth, cut out in seat plate

Adjustment range, inner dimension

50 mm

Depth without footrests

Depth without footrests

845 mm

Footplate depth

Footplate depth

160 mm

Max. User weight

Max. User weight

150 kg

Weight

Weight

23.5 kg [VIP] & [VIPX] | 28.3 kg[VIPD]

Wheel diameter / Castors diameter

Wheel diameter / Castors diameter

5" (127 mm)

Colour (other)

Colour (other)

White

Colour (other)

Comment

Please note [VIP] refers to Aquatec Ocean VIP version, [VIPX] refers to Aquatec Ocean VIP XL version and [VIPD] refers to Aquatec Ocean Dual VIP version.
