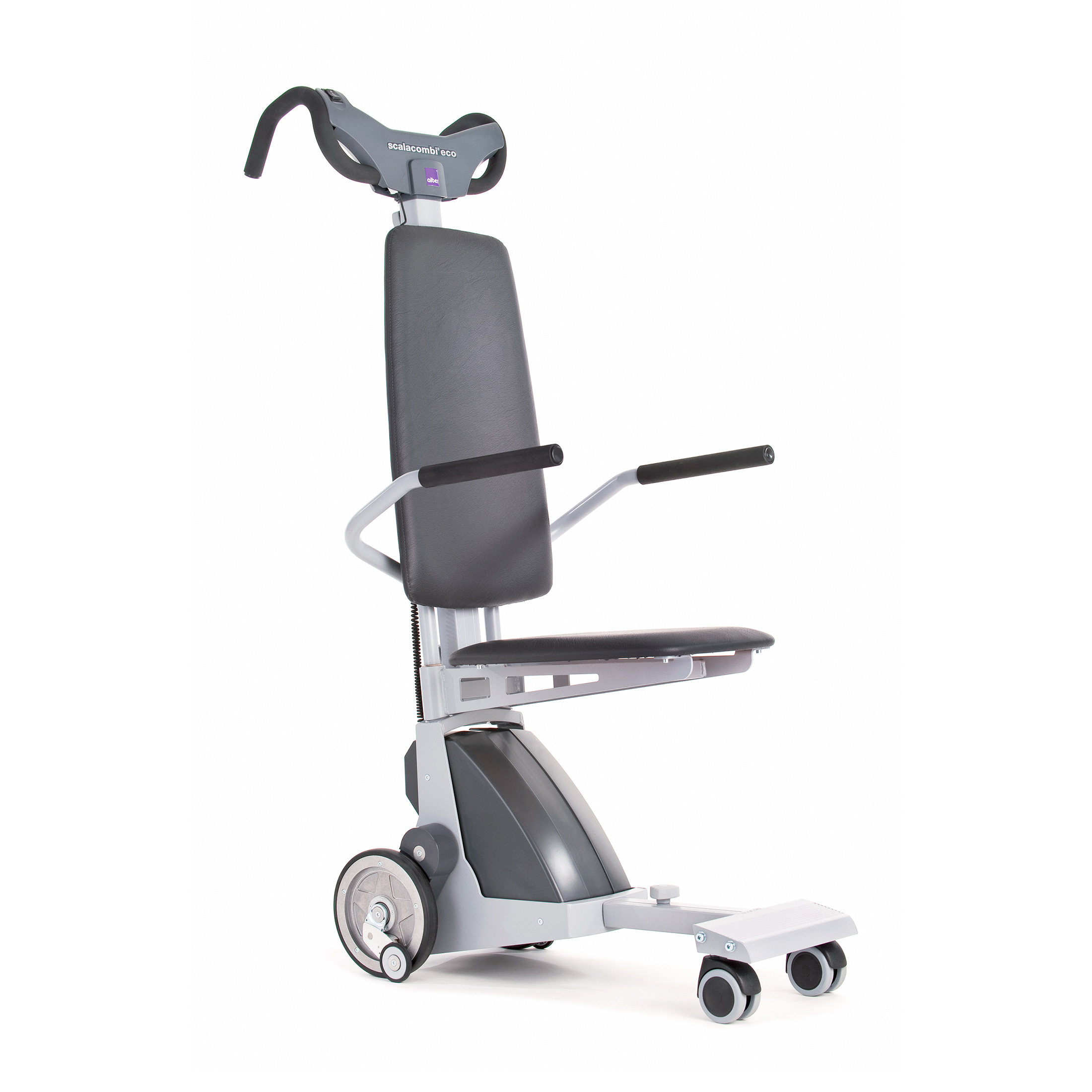

inspirational|SCALACOMBI ECO BE 12.jpg|scalacombi ECO S34 stairclimber
Discontinued product Discontinued product

Discover our latest stairclimber, click here.

cover|SCALACOMBI-ECO-CV-1.jpg|scalacombi ECO S34 stairclimber
cover|SCALACOMBI-ECO-CV-6.jpg|scalacombi ECO S34 stairclimber
benefit|SCALACOMBI-ECO-BE-14.jpg|scalacombi ECO S34 stairclimber
benefit|SCALACOMBI-ECO-BE-23.jpg|scalacombi ECO S34 stairclimber
cover|SCALACOMBI-ECO-CV-1.jpg|scalacombi ECO S34 stairclimber
cover|SCALACOMBI-ECO-CV-6.jpg|scalacombi ECO S34 stairclimber
benefit|SCALACOMBI-ECO-BE-14.jpg|scalacombi ECO S34 stairclimber
benefit|SCALACOMBI-ECO-BE-23.jpg|scalacombi ECO S34 stairclimber
cover|SCALACOMBI-ECO-CV-1.jpg|scalacombi ECO S34 stairclimber
cover|SCALACOMBI-ECO-CV-6.jpg|scalacombi ECO S34 stairclimber
benefit|SCALACOMBI-ECO-BE-14.jpg|scalacombi ECO S34 stairclimber
benefit|SCALACOMBI-ECO-BE-23.jpg|scalacombi ECO S34 stairclimber
scalacombi eco ready for transport
scalacombi eco ready for transport

The compact components fit into the booth of any car.

Handle
Handle

Handles with soft coating.

Operation switch
Operation switch

Easily accessible toggle switch to activate the climbing mechanism upstairs/downstairs.

Height adjustable handles
Height adjustable handles

Three step height adjustment to adapt handles to the body height of the operator.

Climbing mechanism
Climbing mechanism

Allows to overcome straight as well as most spiral staircases. With integrated Soft-Step for a comfortable ride.

Control elements
Control elements

Main switch, multicolour LED battery- and status display with acoustic warning signal.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Reimbursement code

Reimbursement code

18.65.01.1031

Speed

Speed

12 steps per minute

Driving range

Driving range

up to 300 steps (depending on user weight)

Motor capacity

Motor capacity

178 W

Max. climbable obstacle height

Max. climbable obstacle height

20 cm

Steps per min

Steps per min

12

Total steps

Total steps

200

Battery capacity

Battery capacity

24 V / 3.4 Ah

Battery type

Battery type

Lead-Gel

Battery weight

Battery weight

2.7 kg

Step height

Step height

20 cm

Total weight

Total weight

30.6 kg

Max. User weight

Max. User weight

120 kg

Test & Certificates (1)
