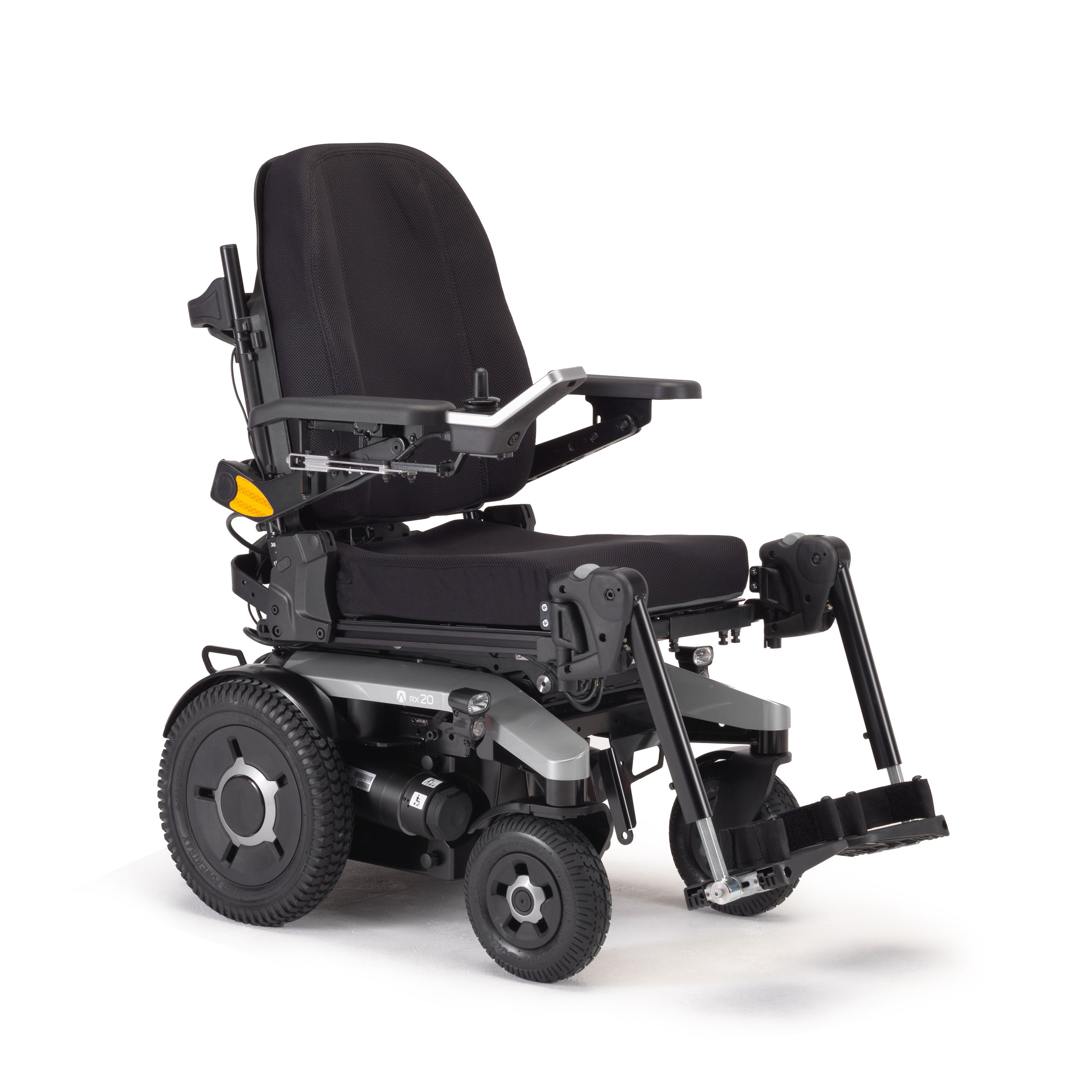

AVIVA RX20 Modulite power wheelchair

AVIVA RX Modulite - Inspirational image

Our AVIVA RX 20 power wheelchair is the first in a new range of powerchairs that are unlike any other chairs on the market. Bringing together the key elements that define performance, these new rear wheel drive power wheelchairs combine an innovative method of managing centre of gravity for optimal weight distribution with superior suspension. They quite simply re-define rear wheel performance, delivering unbeatable control, exceptional traction and extreme ride comfort.

AVIVA RX is designed around 3 key elements: design, technology and performance to provide an everyday mobility solution. Its clean, modern base with sleek colour shrouds provides a fresh look to rear wheel drive powerchairs. With its compact base just 560mm wide, the RX20 is extremely versatile and manoeuvrability, with a tight turning radius its ideal for small spaces and everyday mobility whether indoors or out and about. It has a seat to floor height of only 435mm ideal for positioning at tables or desks and can be used in wheelchair accessible vehicles (WAVs).

The RX20 features our latest technology with the LINX system that cleverly interprets, learns and adapts the motors to changes in driving habits to ensure a consistent drive performance day after day. This inbuilt intelligent system compensates for imbalances when driv

Wind and rain cover
myBlanket

Stay warm and dry with this weather resistant blanket. Packs to a small compact size when not in use. An ideal option for wheelchairs and mobility scooters. Discover more here

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

330 - 580 mm

Seat depth

Seat depth

410 - 510 mm

Seat height

Seat height

435, 460, 485 mm

Backrest height

Backrest height

Sling back: 480 / 540 mm; Flex 3: 506 - 610 mm ; Matrx: 400 / 500 mm

Armrest height

Armrest height

230 - 360 mm

Length of footrests

Length of footrests

280 - 460 mm

Seat angle

Seat angle

0 - +30°

Backrest angle

Backrest angle

90 - 120°

Total height

Total height

1000 - 1335 mm

Total length inc. footrests

Total length inc. footrests

1026 - 1300 mm

Total length without footrests

Total length without footrests

830 mm

Driving Unit Width

Driving Unit Width

560 mm, 635 mm

Max. User weight

Max. User weight

136 kg

Battery capacity

Battery capacity

52 Ah

Turning diameter

Turning diameter

1506 - 2086 mm

Max. climbable obstacle height

Max. climbable obstacle height

60 mm (100 mm with kerb climber)

Max. safe slope

Max. safe slope

6, 10°

Motor capacity

Motor capacity

2 x 340 W

Speed

Speed

6 km/h

Driving range

Driving range

Up to 47 km

Total weight

Total weight

105 - 185.2 kg
