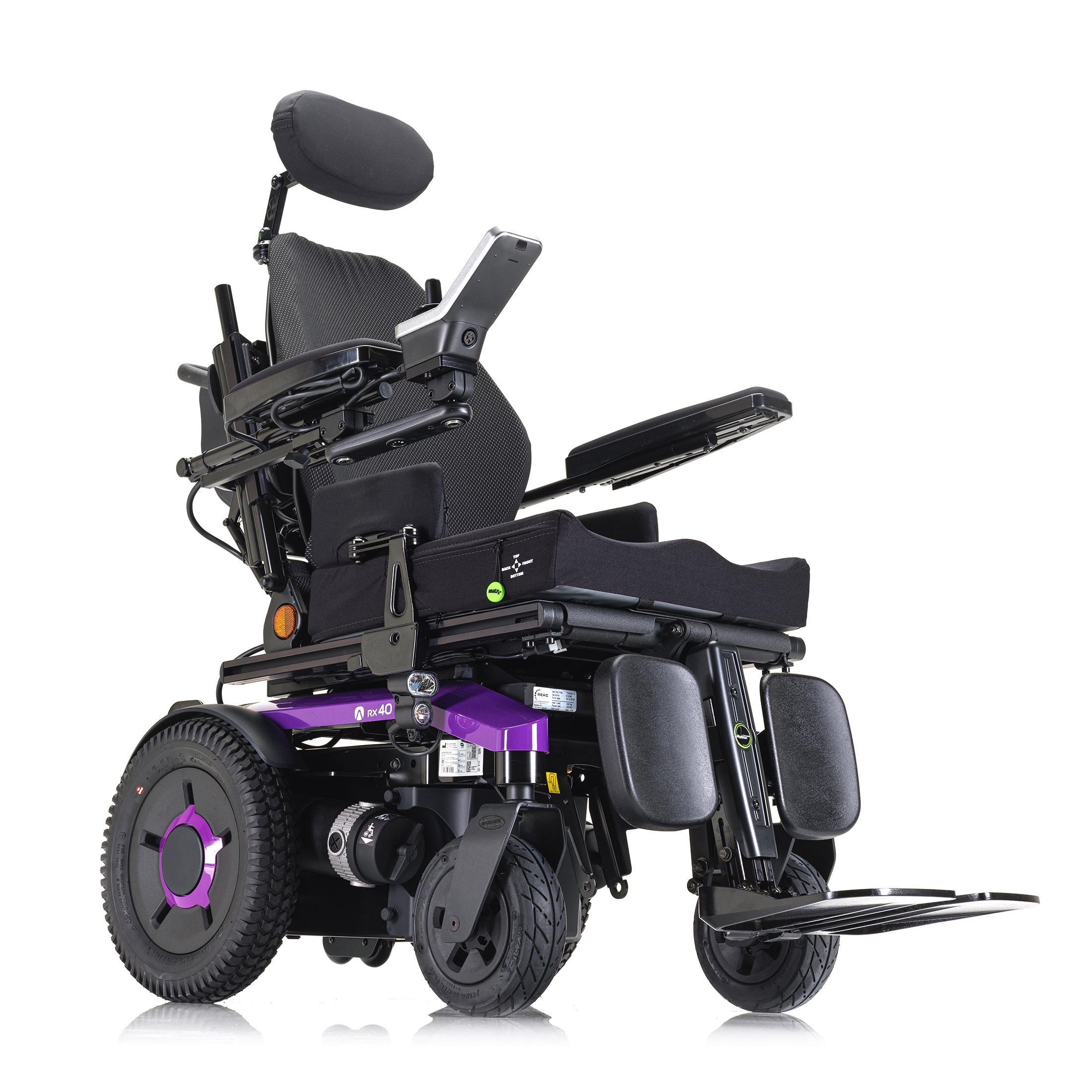

AVIVA RX - Side view
AVIVA RX ULM - Seat tilt
AVIVA RX ULM - Front facing
AVIVA RX - Side view
AVIVA RX ULM - Seat tilt
AVIVA RX ULM - Front facing
AVIVA RX - Side view
AVIVA RX ULM - Seat tilt
AVIVA RX ULM - Front facing
Sleek and stylish
Sleek and stylish

Great aesthetics with clean lines, sleek angles, and a high-quality finish. A choice of five exciting colours for you to select your style.

Award-winning Matrx
Award-winning Matrx

Personlised Matrx seating options available to ensure an optimum fit every time.

Multi-adjustable Resolve control mount
Multi-adjustable Resolve control mount

An exceptional range of achievable joystick positions with 360° rotation for optimised comfort and control.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Seat width

Seat width

405 - 555 mm

Seat depth

Seat depth

405 - 580 mm

Seat height

Seat height

420, 435, 460, 485 mm

Backrest height

Backrest height

355 - 505 mm

Armrest height

Armrest height

230 - 405 mm

Length of footrests

Length of footrests

310 - 465 mm

Seat angle

Seat angle

0 - 50°

Backrest angle

Backrest angle

60 - 170°

Total height

Total height

1060 - 1540 mm

Total length inc. footrests

Total length inc. footrests

1202 - 1476 mm

Total length without footrests

Total length without footrests

1006 mm

Driving Unit Width

Driving Unit Width

560 mm, 635 mm

Max. User weight

Max. User weight

136 kg

Battery capacity

Battery capacity

60/73.5 Ah

Turning diameter

Turning diameter

1975 - 2105 mm

Max. climbable obstacle height

Max. climbable obstacle height

60 mm (100 mm with kerb climber)

Max. safe slope

Max. safe slope

Motor capacity

Motor capacity

2 x 340 W

Speed

Speed

6/10/12.5 km/h

Driving range

Driving range

Up to 34 km

Total weight

Total weight

148.6 - 190.1 kg
