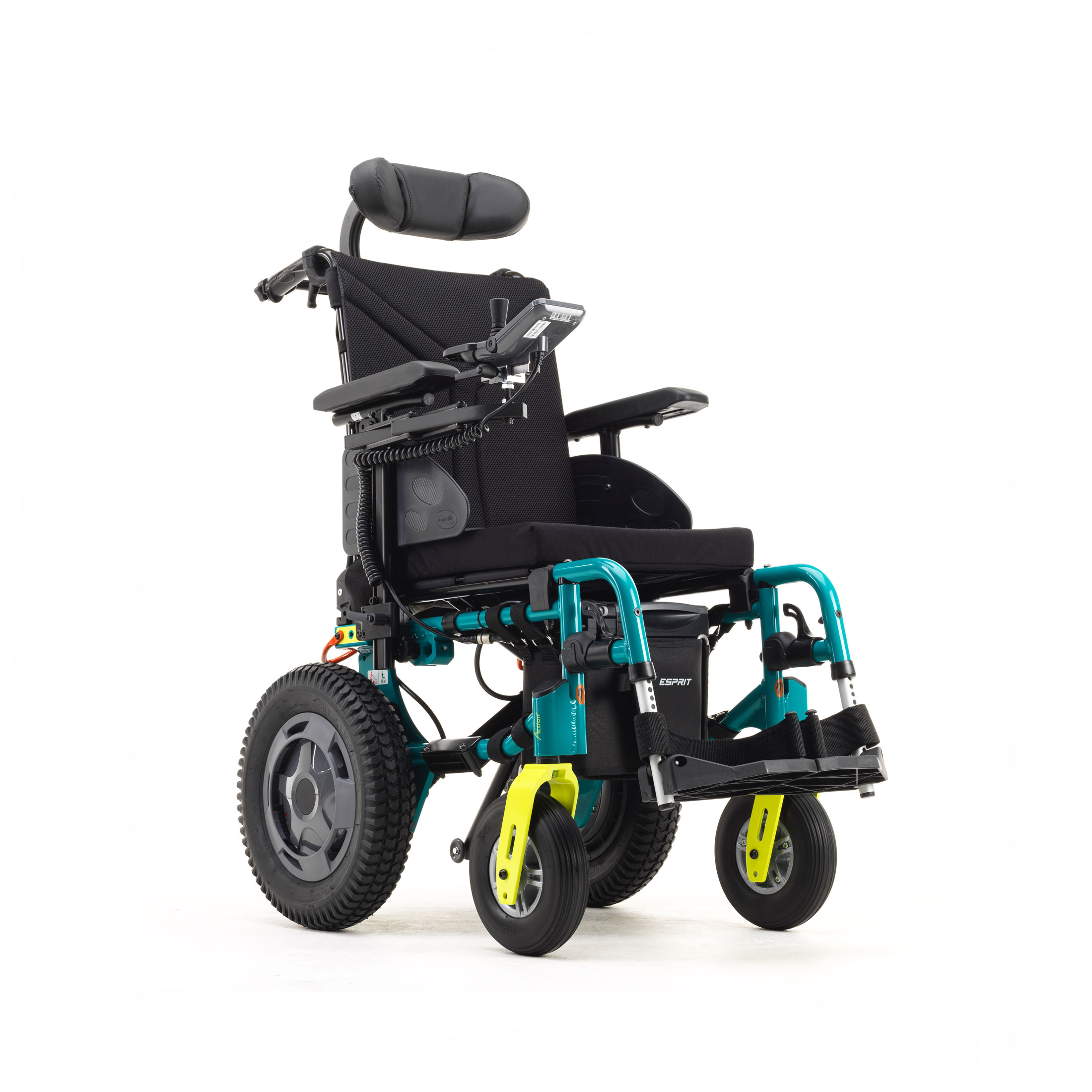

Esprit Action junior power wheelchair

The  Esprit Action Junior power chair is a lightweight, folding power chair. It offers a perfect combination of technology, comfort and drive performance in this new and improved model.

The Junior version has the same features as the Adult version with gyro technology, a compact wheelbase and slimline design, making it ideal for negotiating small areas. It enables children to enjoy an active and independent lifestyle, encouraging kids to be kids, be happy and confident.

Young girl in Action Esprit power wheelchair
Young girl in Action Esprit power wheelchair
Young girl in Action Esprit power wheelchair

Whether its connecting with friends indoors, or meeting up outdoors and play, the Esprit Action is quick and simple to dismantle and transport. Sharper visual aesthetics and a choice of three colour combination, the Esprit Action ensures children use their wheelchair without limitations. Discover, Explore, Experience!

Key Features:

  • Negotiates narrow spaces with ease featuring gyro technology
  • Effortlessly handles inclines of up to 6 degrees. The gyro technology reduces acceleration according to the degree of slope meaning the individual remains in control at all times.
  • New 14" rear wheels provide better drive performance for a smooth comfortable drive
  • Easier to transport, the chair dismantles and folds for transportation
  • Cross compatible with the Action range of options and accessories
  • 6km/h speed
  • Maximum user weight of 80kg

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

305 - 380 mm

Seat depth

Seat depth

325 - 375 mm

Seat height

Seat height

460 or 485 mm

Backrest height

Backrest height

390 - 510 mm

Length of footrests

Length of footrests

200 - 330 mm

Seat angle

Seat angle

Backrest angle

Backrest angle

0° - 30°

Total height

Total height

945 - 1000 mm

Total length inc. footrests

Total length inc. footrests

925 - 1075 mm

Total length without footrests

Total length without footrests

640 - 970 mm

Driving Unit Width

Driving Unit Width

Seat width + 180 mm

The heaviest part

The heaviest part

15kg (frame)

Max. User weight

Max. User weight

80kg

Battery capacity

Battery capacity

36 V (3 x 12V)/ 7.65 Ah

Turning diameter

Turning diameter

1430 - 1960 mm

Max. climbable obstacle height

Max. climbable obstacle height

30 mm

Max. safe slope

Max. safe slope

Motor capacity

Motor capacity

6 km/h: 2 x 110 W
8 km/h: 2 x 150 W

Battery type

Battery type

Non spillable lead acid battery

Speed

Speed

6 km/h or 8 km/h

Driving range

Driving range

15km

Total weight

Total weight

40.4 - 45 kg

Crash tested

Crash tested

Frame colour

Frame colour

Anthracite Black / Hypnotic Purple / Pop Blue / Slate Grey

Frame colour

Comment

  • Adjustable armrests: +50 mm
