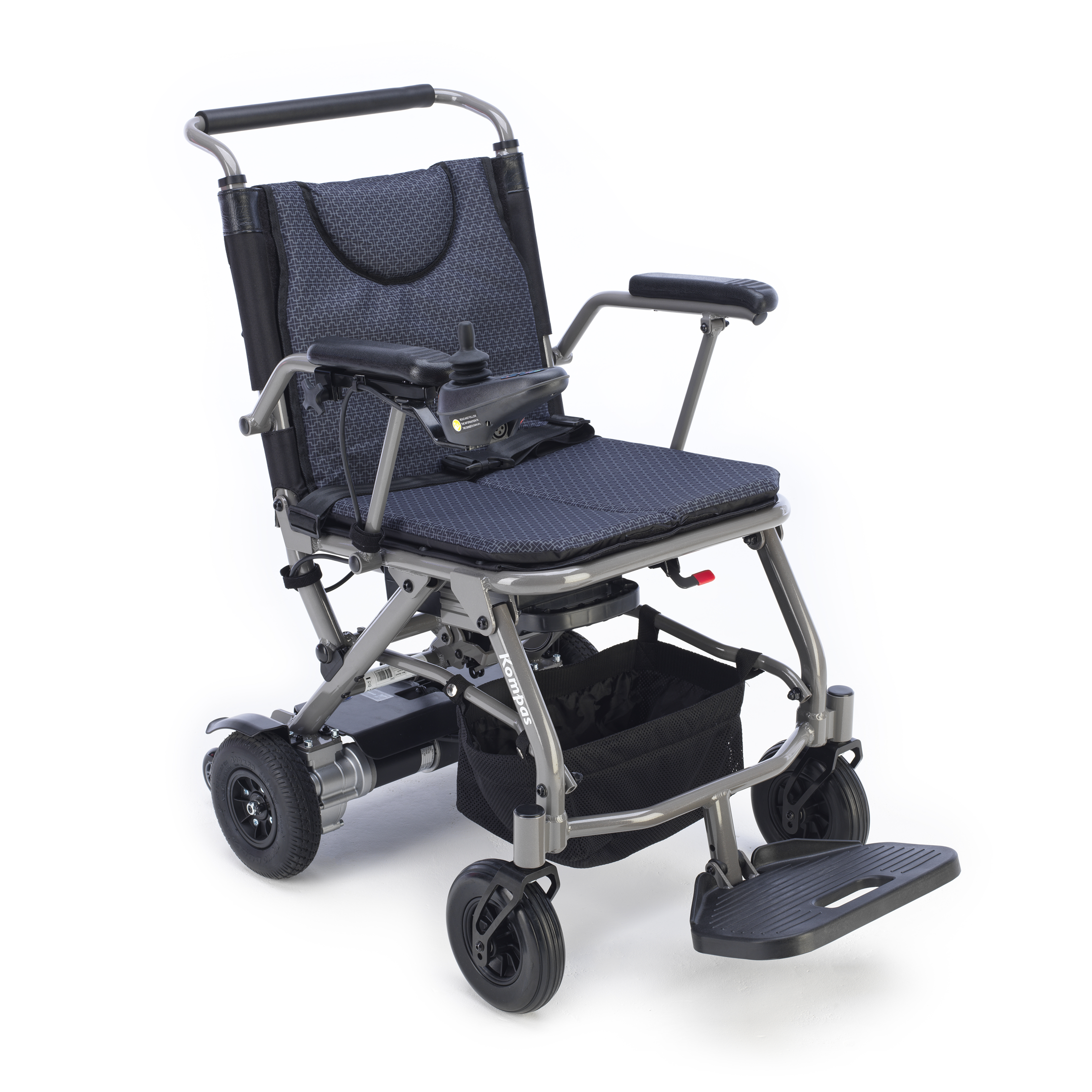

Kompas power wheelchair - the size of a suitcase

The Invacare Kompas is our lightest, most compact, folding power wheelchair. It has been smartly designed to enable individuals to maintain active and independent lifestyles. Created with a slimline manual wheelchair chassis and neatly placed power controls, the Invacare Kompas is easy to use, transport and store.

A sleek and simple one-step folding mechanism allows the Kompas power wheelchair to fold in seconds without having to remove the battery pack. With an impressive frame weight of less than 21kg, the Invacare Kompas is a first choice when looking for an easy to use, yet robust power wheelchair.

Invacare KOMPAS Folding Power Chair
Invacare KOMPAS One Step Folding Mechanism

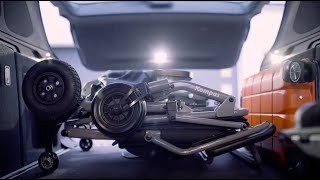

Kompas power wheelchair - fits in the car boot
Invacare Kompas power wheelchair
Kompas power wheelchair - compact to fit in the car
Kompas controller
Kompas upholstery
Invacare KOMPAS Folding Power Chair
Invacare KOMPAS One Step Folding Mechanism
Kompas power wheelchair - fits in the car boot
Invacare Kompas power wheelchair
Kompas power wheelchair - compact to fit in the car
Kompas controller
Kompas upholstery
Invacare KOMPAS Folding Power Chair
Invacare KOMPAS One Step Folding Mechanism
Kompas power wheelchair - fits in the car boot
Invacare Kompas power wheelchair
Kompas power wheelchair - compact to fit in the car
Kompas controller
Kompas upholstery

Get where you want to go and travel without limitations.

Its high-quality controller indicates remaining battery charge, facilitates easy speed adjustments and nimble movement control. Our Invacare Kompas wheelchair is the perfect solution for those wanting to get the most out of life.

Key features

  • Height Adjustable: For taller clients, the Invacare Kompas wheelchair equipped with a height-adjustable backrest that provides extra support and comfort. The supportive flip-up and anti-skid pedal are equipped with three height adjustments for enhanced comfort.
  • Lightweight Frame: Though it’s equipped with many features the wheelchair only has a frame weight of less than 21kg, making it easy to lift without additional help.
  • Removable Lithium-Ion Battery: Although it can be easily removed, thanks to it’s convenient design there is no need to remove the battery pack when folding the wheelchair. The airline-approved removable battery also features an additional charging port and battery indicator for additional user-friendly operation.
  • One-step Folding Mechanism: Folding and unfolding this power wheelchair is a straightforward process thanks to an easy to locate lever. The one-step folding mechanism makes it quite easy to fold the power wheelchair to a compact size of 590 x 370 x 810mm.
One-Step Folding Mechanism
One-Step Folding Mechanism

The lightweight Kompas can be easily folded to a compact size of 590 x 370 x 810mm for transportation and storage.

Removable Lithium-Ion Battery
Removable Lithium-Ion Battery

11.4Ah Li-On battery can be easily removed for off-board charging. The airline approved battery is also equipped with a useful charge indicator.

Versatile and convenient
Versatile and convenient

Combines the freedom of a powered mobility device with the compact design of a manual wheelchair.

Durable UK P&G Controller
Durable UK P&G Controller

High quality controller indicates the remaining battery charge and allows for easy speed adjustments and nimble movement control. Equipped with on-board charging port.

Convenient Storage Basket
Convenient Storage Basket

Easily removable under-seat storage basket enables the transportation of small items during journeys.

Accessible Anti-Tippers
Accessible Anti-Tippers

Helps to allow easy manoeuvrability for transport and additional stability for storage. Provides additional support for when the chair can be used for manual transportation.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Seat width

Seat width

460 mm

Seat depth

Seat depth

420 mm

Seat to floor height

Seat to floor height

520 mm

Total height

Total height

950 - 1000 mm

Driving Unit Width

Driving Unit Width

590 mm

Total length

Total length

970 mm

Empty weight

Empty weight

20.9 kg excluding battery

The heaviest part

The heaviest part

20.9 kg

Max. User weight

Max. User weight

115 kg

Battery capacity

Battery capacity

24V / 11.4 Ah

Turning diameter

Turning diameter

825 mm

Max. climbable obstacle height

Max. climbable obstacle height

50 mm

Ground clearance

Ground clearance

30 mm

Max. safe slope

Max. safe slope

Motor capacity

Motor capacity

DC24V/70 watt

Battery type

Battery type

Lithium Ion

Speed

Speed

6.4 kph / 4 mph

Driving range

Driving range

11km / 6.8miles

Total weight

Total weight

23 kg

Frame colour

Frame colour

Black/Grey

Rim colour

Rim colour

Black

Upholstery

Upholstery

Black
