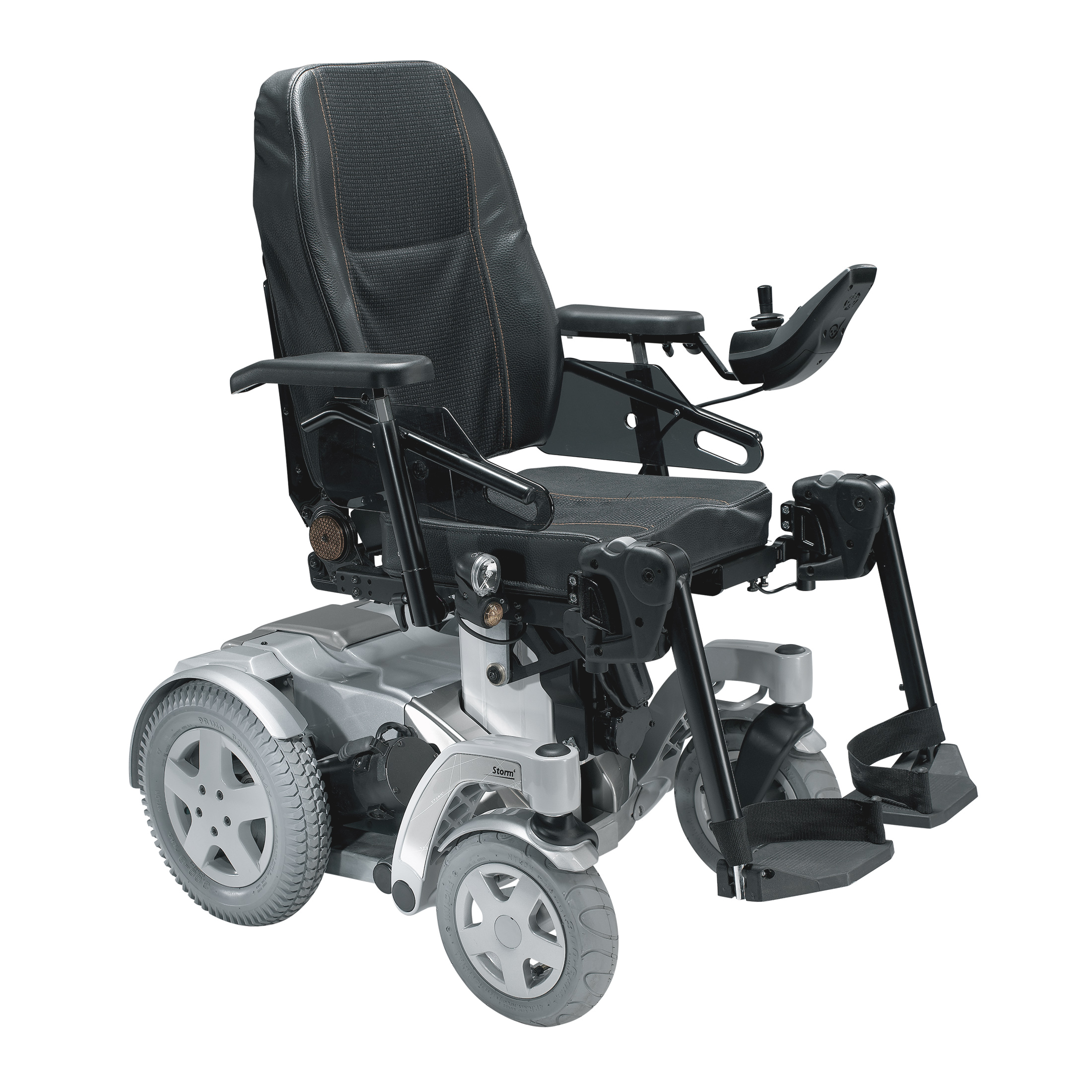

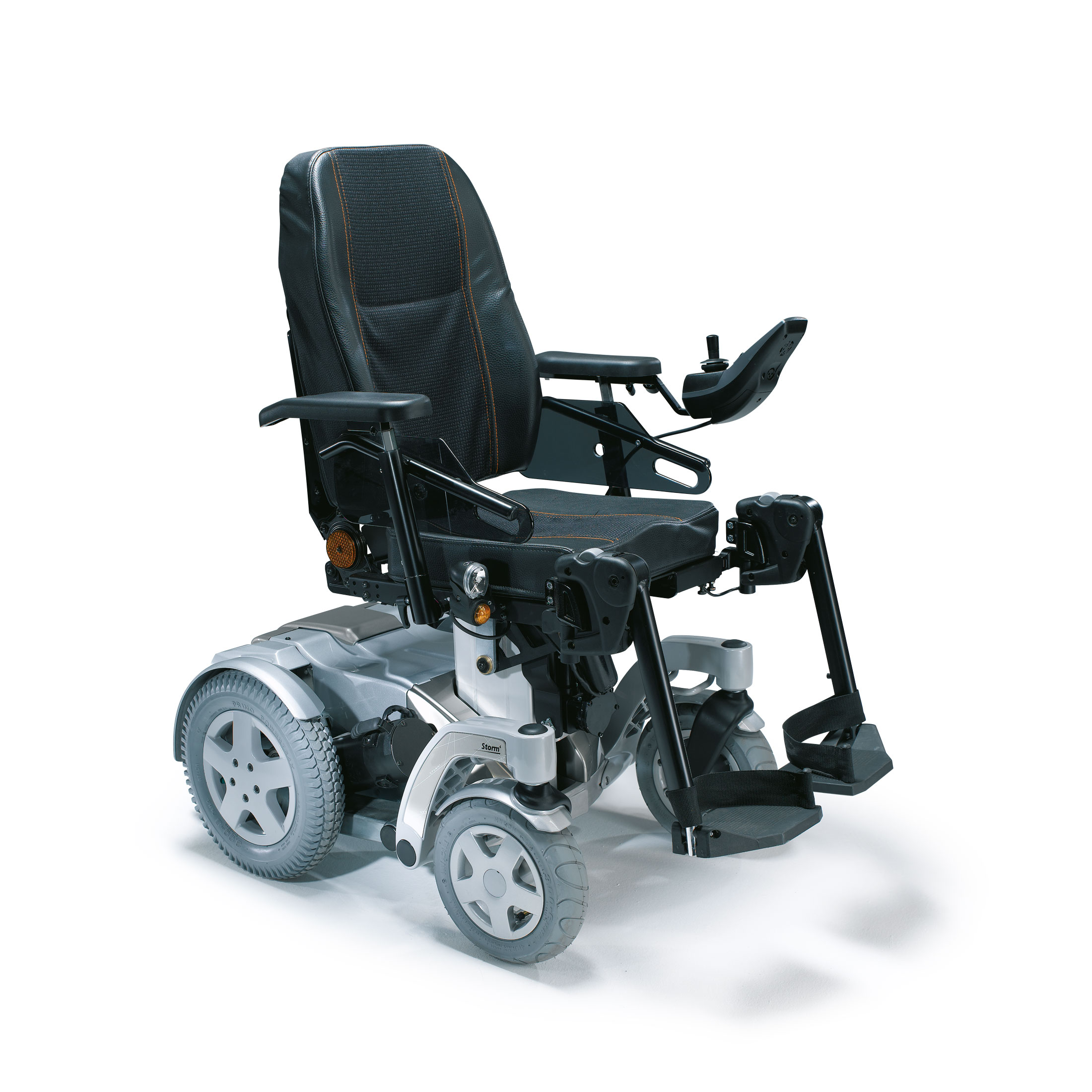

When it comes to high configurability, adaptability, and functionality in a powerchair, the Invacare Storm4 powerchair is simply unbeatable. This power wheelchair is specially designed to satisfy complex user requirements concerning configurability, flexibility, and functionality. It can be used as an outdoor wheelchair or indoor wheelchair providing a safe and stable drive experience without compromising on manoeuvrability. Thanks to its contemporary design, it also ensures the powerchair is always elegant and stylish.

Storm4 comes with a modular concept, which lets it easily adapt to a diverse range of user needs. The motor type and speed can be selected according to indoor or outdoor use. It also features a wide range of backrest styles are available on the ModuliteTM seating system to ensure a good posture for the user. Also, available is the ability to modify the seat and backrest width over a larger range.

cover|STORM4-CV09.jpg|Invacare Storm 4 power wheelchair
cover|STORM4-CV08.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE-52.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE07.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE-13.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE-18.jpg|Invacare Storm 4 power wheelchair
cover|STORM4-CV09.jpg|Invacare Storm 4 power wheelchair
cover|STORM4-CV08.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE-52.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE07.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE-13.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE-18.jpg|Invacare Storm 4 power wheelchair
cover|STORM4-CV09.jpg|Invacare Storm 4 power wheelchair
cover|STORM4-CV08.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE-52.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE07.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE-13.jpg|Invacare Storm 4 power wheelchair
benefit|STORM4-BE-18.jpg|Invacare Storm 4 power wheelchair

The Invacare Storm4 is also very easy to handle – carefully built with the need for ease of handling in mind. The batteries are straightforward to remove, and the electronics are easily accessed for quick, trouble-free servicing. This power wheelchair also comes with exceptional aesthetics. The contemporary design of the Storm4 indicates its robust construction and excellent driving performance. It has a modern LED lights, and the front arms are coloured with attractive side applications to compliment the chosen cover colour. Key features of the Invacare Storm4 include:

  • Four-wheel suspension: It has four individually adjustable high-end springs, with integrated shock absorbers.

  • Touchscreen technology: It comes with REM400 remote that has an impressive 3.5” colour touchscreen – it requires minimal force to operate.

  • Built-in Bluetooth: With the REM400, users can connect to 3 devices at the same time, and it has mouse mover technology.

  • Maintenance and service: Easy access to all electronics, cabling, and harnesses make servicing quick and troublefree. Batteries also slide out easily.

  • LiNX Smart Technology: It allows professionals to configure and tailor power chairs quickly and more intuitively.

  • Colour choice: It comes in different colours; users can choose their desired colours.



Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

Modulite™: 380 - 530 mm

Recaro: 490 - 530 (360) mm

Seat depth

Seat depth

Modulite™: 410 - 510 mm

Recaro: 460 - 510 mm

Seat height

Seat height

400 - 650 mm (3)

450 / 480 mm without lifter

Backrest height

Backrest height

Modulite™: 480, 540, 560 mm (1, 9)

Recaro: 770 - 830 mm (1)

Armrest height

Armrest height

Modulite™: 275 - 340/ 325 - 390 mm (10), 245 - 310/ 295 - 360 mm (11)

Recaro: 250- 340 / 290 - 380 mm

Length of footrests

Length of footrests

290 - 460 mm

Seat angle

Seat angle

0° - 25°

Backrest angle

Backrest angle

Modulite™: 90 - 120°

Recaro: 90 - 135°

Total height

Total height

Modulite™: 1020 - 1190 mm

Recaro: 1300 mm

Total length inc. footrests

Total length inc. footrests

1190 mm (6)

Total length without footrests

Total length without footrests

910 mm

Driving Unit Width

Driving Unit Width

630 mm (wheelbase)

Max. User weight

Max. User weight

150 kg

Battery capacity

Battery capacity

73.5 Ah

Turning diameter

Turning diameter

1770 mm

Max. climbable obstacle height

Max. climbable obstacle height

60 / 100 mm

Max. safe slope

Max. safe slope

20% (11.3°)

15% (8°) with lifter

Motor capacity

Motor capacity

340 W

Speed

Speed

6, 10 or 12 km/h

Driving range

Driving range

up to 37 km (7)

Total weight

Total weight

174 kg

Crash tested

Crash tested

Shroud colour

Shroud colour

Standard colours: Blue (RAL 5026), Black (RAL 9005), Champagne (0314) - Colour Options: Transparent Red (0200), White (RAL 9016), Olive Green (RAL 6003)

Shroud colour

Comment

Please note [MO] refers to Modulite seat and [RE] refers to Recaro seat.

  1. Measured from seat plate
  2. Average, varies with configuration
  3. Ground to seat plate, w/o seat cushion
  4. Measured from foot plate to seat plate
  5. + 50 mm armrest adjustment
  6. Legrest at largest angle
  7. Depending on motor configuration, measurement according to ISO 7176-4 @ 6 km/h
  8. Powered; man. settable 0-9°
  9. Depending on back support choice
  10. With one-piece seat plate
  11. With telescopic seat frame
  12. Invacare Modulite seat components are cross compatible across the Invacare electric wheelchair range and partly with the Invacare Rea manual wheelchair family.
