Matrx Libra and Matrx MAC back modelled on Aviva

Customised Skin Protection and Support

Introducing Matrx® Libra cushion, a perfect balance of immersion, offloading and envelopment to deliver our highest level of skin protection and positioning across our range. A versatile and modular cushion that complements both manual and powered wheelchairs. Available with a full range of options for adjustable and targeted skin protection, individual comfort and postural support.

Matrx Libra
Matrx Libra
Matrx Libra
Matrx Libra orientation mark
Matrx Libra on Kuschall KSL with Bodypoint Evoflex belt
Matrx Libra cushion with E2 backrest on Action wheelchair
Matrx Libra
Matrx Libra
Matrx Libra
Matrx Libra orientation mark
Matrx Libra on Kuschall KSL with Bodypoint Evoflex belt
Matrx Libra cushion with E2 backrest on Action wheelchair
Matrx Libra
Matrx Libra
Matrx Libra
Matrx Libra orientation mark
Matrx Libra on Kuschall KSL with Bodypoint Evoflex belt
Matrx Libra cushion with E2 backrest on Action wheelchair

Advanced pressure injury prevention

Matrx Libra is an adjustable skin protection and positioning cushion combining our signature moulded foam and Flo-tech™ fluid with a range of options. It is completely configurable for the widest range of conditions and positioning needs. The cushion options are designed to enhance immersion as well as correct or accommodate pelvic positioning.

Promotes stability

Stability starts with the pelvis. Matrx® Libra is a contoured cushion that provides lateral trochanteric support and anterior/posterior pelvic stability, and promotes spinal extension for improved upper extremity function, head control and physiological function.

Key features

  • Customise: Choose from a range of positioning options to enhance immersion, correct or accommodate pelvic posture
  • Moulded shape: Durable moulded high resilient foam provides stability in the wheelchair

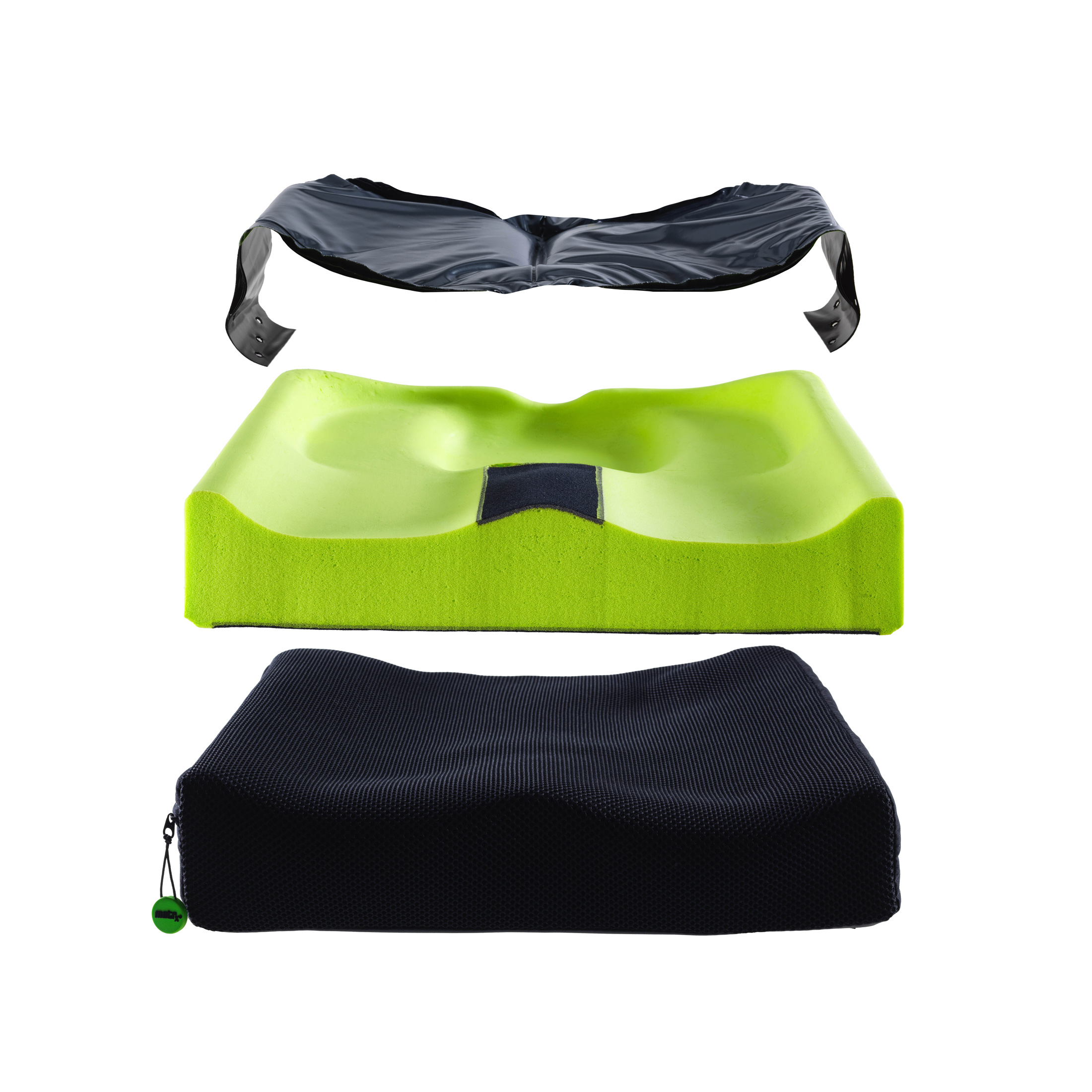

  • Flo-tech™ technology: Dual layer, three chamber fluid sac for maximum protection around bony prominences. Non-temperature sensitive fluid requires no kneading or maintenance
  • Rear cushion radius: 38 mm curved extension increases surface area for increased pressure injury prevention and stabilizes fluid in tilted positions.
  • Waterfall front edge: Allows full support of thighs, optimal foot positioning, easier transfers and foot propulsion
Immersion
Immersion

Maximises surface contact area in order to reduce peak pressures. Pressure = Force/Area.

Off-Loading
Off-Loading

Transfers forces away from the ischial tuberosities with greater weight bearing on the trochanters, hips and
thighs.

Envelopment
Envelopment

Fluid sac completely surrounds the bony prominences, even during position changes.

Pelvic Stability
Pelvic Stability

Promotes spinal extension for improved upper extremity and physiological function as well as head control.

Modular for custom fit
Modular for custom fit

Enhance immersion, correct or accommodate pelvic positioning with our wide range of options.

One Solution
One solution
Bringing together some of our very best wheelchair and seating brands to create winning combinations. Recommended by healthcare professionals and available as one order and one delivery.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Sales Literature (2)
Technical data
Technical data
Size

Size

Several sizes available. See brochure for detailed information.

Height at adductor/abductor

Height at adductor/abductor

Thickness at Abductor Std 8.5cm / HD 9.1cm


Thickness at leg trough

Thickness at leg trough

Thickness at leg trough Std 5.7cm / HD 6.6cm

Total weight

Total weight

1.6 kg

Max. User weight

Max. User weight

136 kg (Std)
227 kg (HD)

Max. cleaning temperature

Max. cleaning temperature

80° (Outer cover)

Surface cleaning

Surface cleaning

Inner liner: With damp cloth

Cover options

Cover options

Smooth: Water resistant, Vapour permeable

Spacer: Vapour permeable

Wipedown: Water resistant, Vapour permeable
