Alegio NG Inspirational

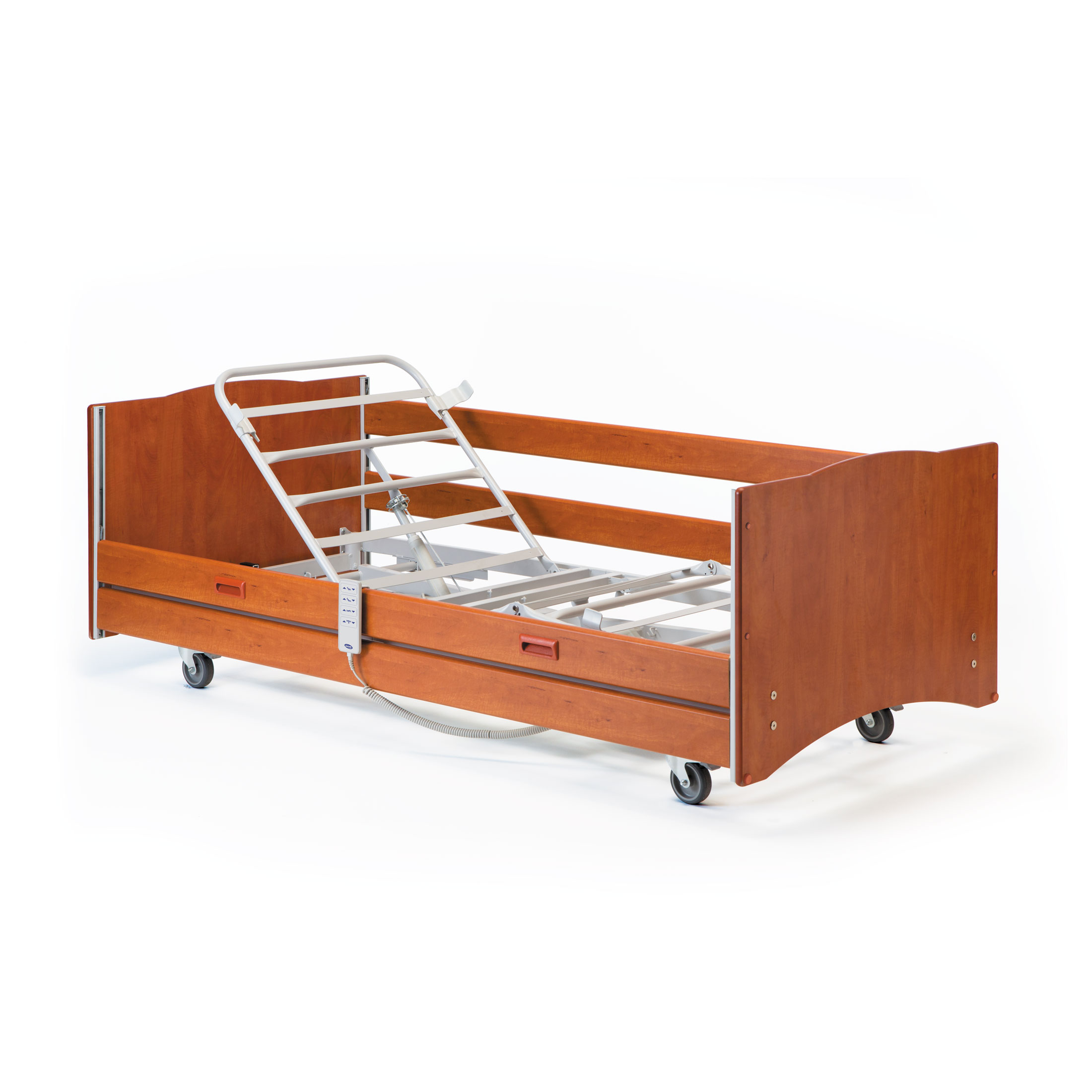

The Invacare Alegio NG Bed is an innovative bed with excellent features – it fits easily into any home care or institutional environment. Alegio NG Bed offers optimal comfort to users through a synchronised Auto Contour mechanism that links the backrest and knee-bend functions.

AlegioNG also features optimised adjustable height range of 28 – 80 cm. The lowest position means that shorter or more unstable users can quickly and safely get up or out of bed. The maximum height, at 80 cm, still ensures healthy working conditions for care staff.

benefit|ALEGIONG-BE08_1.jpg|The Invacare Alegio NG Medical Bed
cover|ALEGIONG-CV01.jpg|The Invacare Alegio NG Medical Bed
cover|ALEGIONG-CV05.jpg|The Invacare Alegio NG Medical Bed
cover|ALEGIONG-MP01.jpg|The Invacare Alegio NG Medical Bed
benefit|ALEGIONG-BE08_1.jpg|The Invacare Alegio NG Medical Bed
cover|ALEGIONG-CV01.jpg|The Invacare Alegio NG Medical Bed
cover|ALEGIONG-CV05.jpg|The Invacare Alegio NG Medical Bed
cover|ALEGIONG-MP01.jpg|The Invacare Alegio NG Medical Bed
benefit|ALEGIONG-BE08_1.jpg|The Invacare Alegio NG Medical Bed
cover|ALEGIONG-CV01.jpg|The Invacare Alegio NG Medical Bed
cover|ALEGIONG-CV05.jpg|The Invacare Alegio NG Medical Bed
cover|ALEGIONG-MP01.jpg|The Invacare Alegio NG Medical Bed

The auto Contour mechanism is an outstanding feature of the Alegio NG Bed. Through a cable, it provides a smooth, synchronized movement between the backrest and knee-bend for a comfortable upright position. This functionality minimises the risk of clients sliding downwards and reduces shear and friction.

The length of the mattress sections has also been optimised in line with medical guidelines based on anthropometric statistics and pressure mapping recommendations to ensure superior patient comfort when seated or lying back in bed.

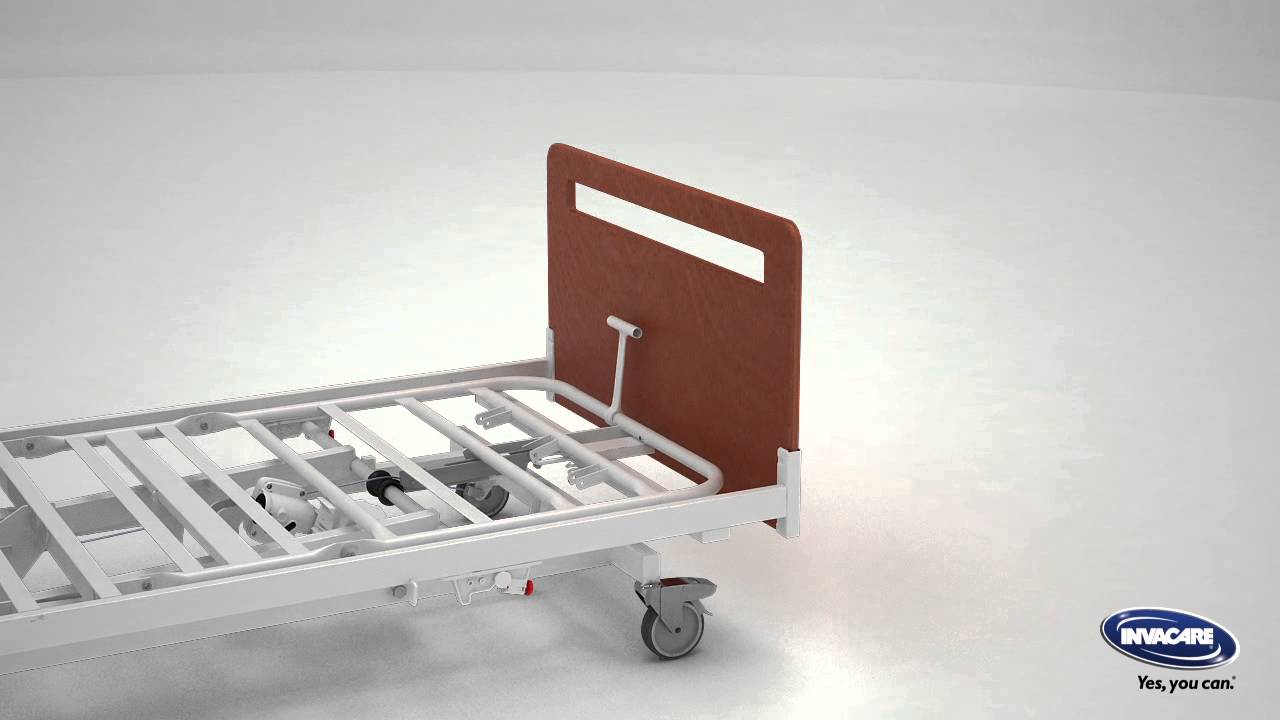

Alegio NG Bed is also easy to handle. It is easy to mount and dismount, and a special kit for transporting the bed in fully assembled mode is also available. The AlegioNG is smooth to assemble and features a quick-release bracket between the base and the mattress platform. No tools are required, and there are no loose parts.

Key features include:

  • Mattress support extension kit: This extends the length by an additional 15 cm.
  • Fully electrically operated bed: The backrest and knee-bend can be individually (manually) activated or synchronised, depending on individual needs.
  • Auto-regression: Provides improved comfort when seated, reduces shear and friction.
  • Transport Trolley: It features a transport trolley for easy transport and storage.
  • Synchronised movement: The lower leg section operates together with the upper leg section in a fixed motion.
  • Britt V full-length side rail in wood: It is available in beech, cherry, white beech, and light oak. The height of full-length side rails can be increased by 150 mm.
    Lifting pole
    Lifting pole

    The catching handle is height and depth adjustable.

    Hand controls
    Hand controls

    Select with or without lockable functions.

    Leave us a message

    We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

    Specifications & Downloads
    Sales Literature (1)
    Technical data
    Technical data
    Width

    Width

    Outside: 900 -1020 mm Inside: 900 mm

    Length

    Length

    Outside: 2110 mm Inside: 2110 mm

    Height adjustment

    Height adjustment

    280 - 800 mm

    Mattress support dimensions

    Mattress support dimensions

    800-230-300-670 mm

    Backrest angle

    Backrest angle

    0 - 70°

    Thigh angle

    Thigh angle

    0 - 33°

    Legrest lift

    Legrest lift

    0 - 18°

    Max. User weight

    Max. User weight

    SWL 170 kg 135 kg

    Total weight

    Total weight

    78 kg

    The heaviest part

    The heaviest part

    35 kg

    Frame colour and wood work

    Frame colour and wood work

    Light grey, Beech, Light oak, White beech, Cherry

    Side rails models

    Side rails models

    Verso II, Britt V, Lisa and Line side rails
