inspirational|COMPACT 2.0 BE03.jpg|Manual wheelchair Küschall Compact black frame woman on the street

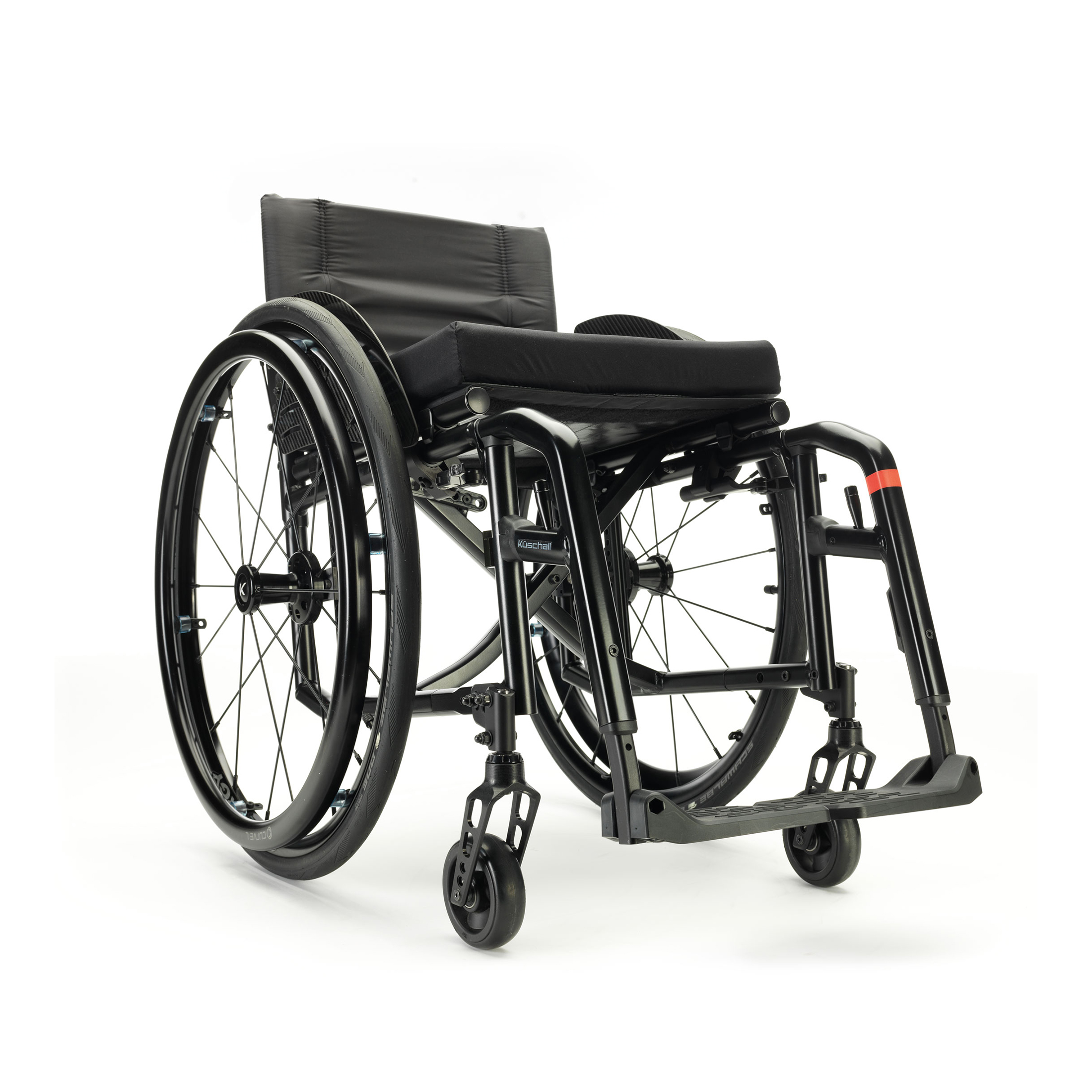

The Küschall Compact is your go-to wheelchair for absolute reliability, high-class quality, and outstanding functionality. Küschall Compact can easily be adapted to suit your needs and lifestyle. Whether you need a higher level of configuration or an active product, Küschall Compact is right for you! This traditional style, cross folding wheelchair can be effortlessly folded. The lightweight frame is robust, giving you a smooth driving performance. Now available as one order. one delivery. onesolution. Discover more in our interactive brochure


benefit|COMPACT 2.0 BE02.jpg|Manual wheelchair Küschall compact 2.0 blue frame
benefit|COMPACT 2.0 BE04.jpg|Manual wheelchair Küschall compact 2.0 blue frame
cover|COMPACT 2.0 CV02.jpg|Manual wheelchair Küschall Compact 2.0 red frame
cover|COMPACT 2.0 CV06.jpg|Manual wheelchair Küschal Compact 2.0 black and red frame
Compact 2.0 1
Compact 2.0 2
Compact 2.0 3
Compact 2.0 4
Compact 2.0 5
ONE-SOLUTION-COMPACT-CV06
ONE-SOLUTION-COMPACT-CV04
ONE-SOLUTION-COMPACT-CV03
benefit|COMPACT 2.0 BE02.jpg|Manual wheelchair Küschall compact 2.0 blue frame
benefit|COMPACT 2.0 BE04.jpg|Manual wheelchair Küschall compact 2.0 blue frame
cover|COMPACT 2.0 CV02.jpg|Manual wheelchair Küschall Compact 2.0 red frame
cover|COMPACT 2.0 CV06.jpg|Manual wheelchair Küschal Compact 2.0 black and red frame
Compact 2.0 1
Compact 2.0 2
Compact 2.0 3
Compact 2.0 4
Compact 2.0 5
ONE-SOLUTION-COMPACT-CV06
ONE-SOLUTION-COMPACT-CV04
ONE-SOLUTION-COMPACT-CV03
benefit|COMPACT 2.0 BE02.jpg|Manual wheelchair Küschall compact 2.0 blue frame
benefit|COMPACT 2.0 BE04.jpg|Manual wheelchair Küschall compact 2.0 blue frame
cover|COMPACT 2.0 CV02.jpg|Manual wheelchair Küschall Compact 2.0 red frame
cover|COMPACT 2.0 CV06.jpg|Manual wheelchair Küschal Compact 2.0 black and red frame
Compact 2.0 1
Compact 2.0 2
Compact 2.0 3
Compact 2.0 4
Compact 2.0 5
ONE-SOLUTION-COMPACT-CV06
ONE-SOLUTION-COMPACT-CV04
ONE-SOLUTION-COMPACT-CV03

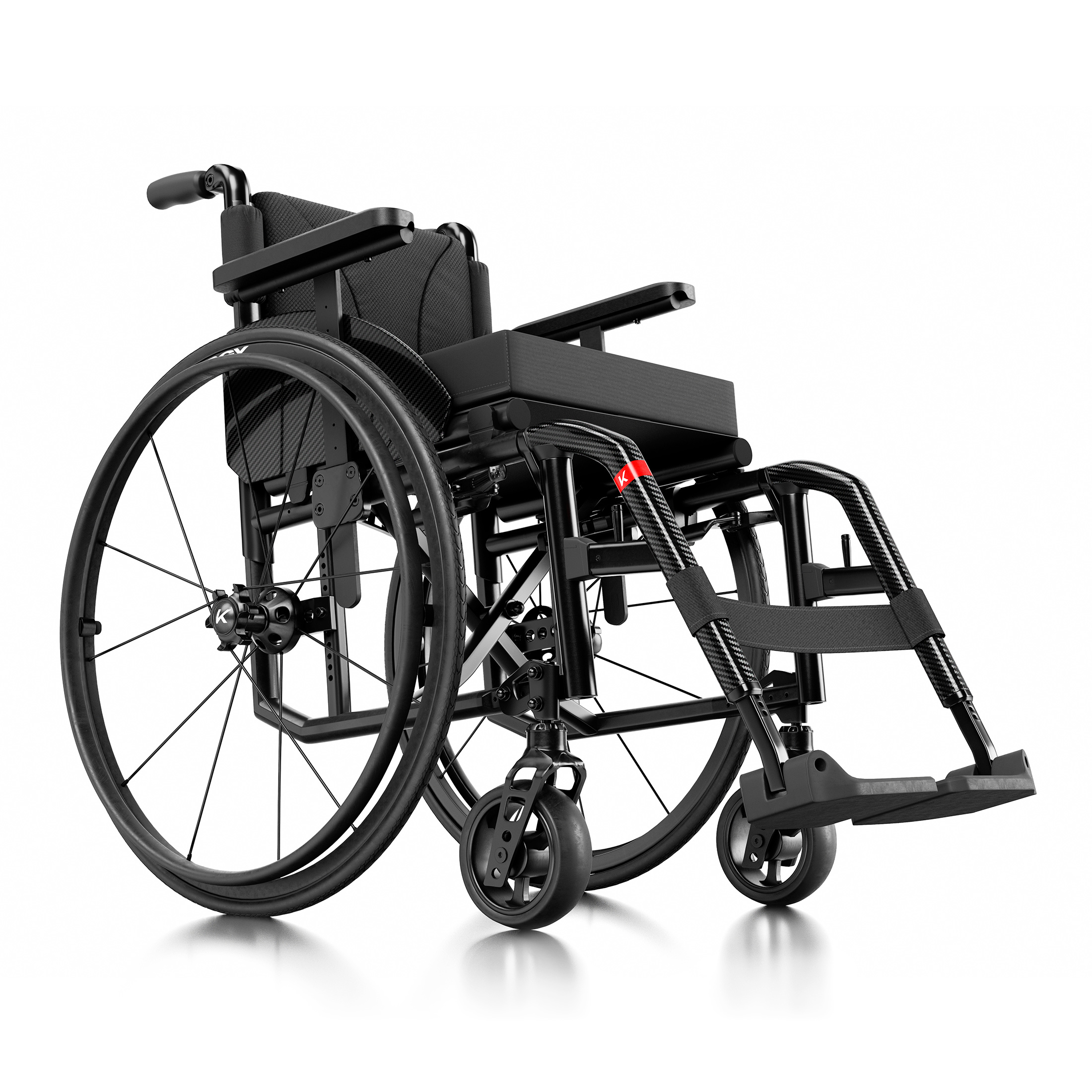

Küschall Compact comes in the highest quality. It has an easily adjustable structure; it is lightweight and quite aesthetically pleasing. This manual wheelchair is more than just a means of transportation but an accessory to life. It is available with fixed or swing-away leg rests.

Users can choose the fixed or swing-away front frame; the result is an all-around product with the stance of a super active wheelchair.

Hydroforming is also added to the Küschall Compact. This allows a significant reduction of the weight of the frame, ensuring less effort in propelling, secure front transfers and a compact storage.

The combination of design and built-in precision results in an ultra-light wheelchair that delivers optimal performance.

Below are some key features of the Invacare Küschall Compact:

  • Ergonomic design: Ensures maximum grip for easy transfer, repositioning or loading in the car. Ergonomics meets today’s hydroforming possibilities, giving life to a design that unites tradition and modernity.

  • Keep On Track: Küschall Compact comes with a Keep On Track feature – for regulations and excellent in keeping the direction steady. Never lose sight of the goal with Keep On Track.

  • Hydroforming: While versatility and comfort remain unaltered, the profile of hydroformed tubes offer more stiffness where necessary, along with a contemporary appeal to the overall look.

  • Adaptability: Küschall Compact is designed to be adapted to your needs and lifestyle easily.

  • Foldable: Küschall Compact is a traditional style cross folding wheelchair that can be folded easily.

  • Lightweight design: It has a robust and lightweight frame, thus providing smooth driving performance.

Two chairs, one platform küschall Compact manual wheelchair
Two chairs, one platform

The wheelchair comes with swing away legrests, ideal for transport or transfers, or fixed front frame at 80 ° or 70 ° for greater rigidity.

Front frame küschall Compact manual wheelchair
Front frame

Complete redesign of the front frame and foot hangers. Ingenious design and skillful application of the hydroforming made possible to obtain a weight reduction up to 500 gr.

 Footplate küschall Compact manual wheelchair
Footplate

The new footplates range fits all seat widths and adds a modern design to its one-piece footplate with the anti-slip surface.

Folding System küschall Compact manual wheelchair
Folding System

Folding Easy \"one-finger\" locking system and longitudinal locking mechanism to house the seat tubes safely in the unfolding phase.

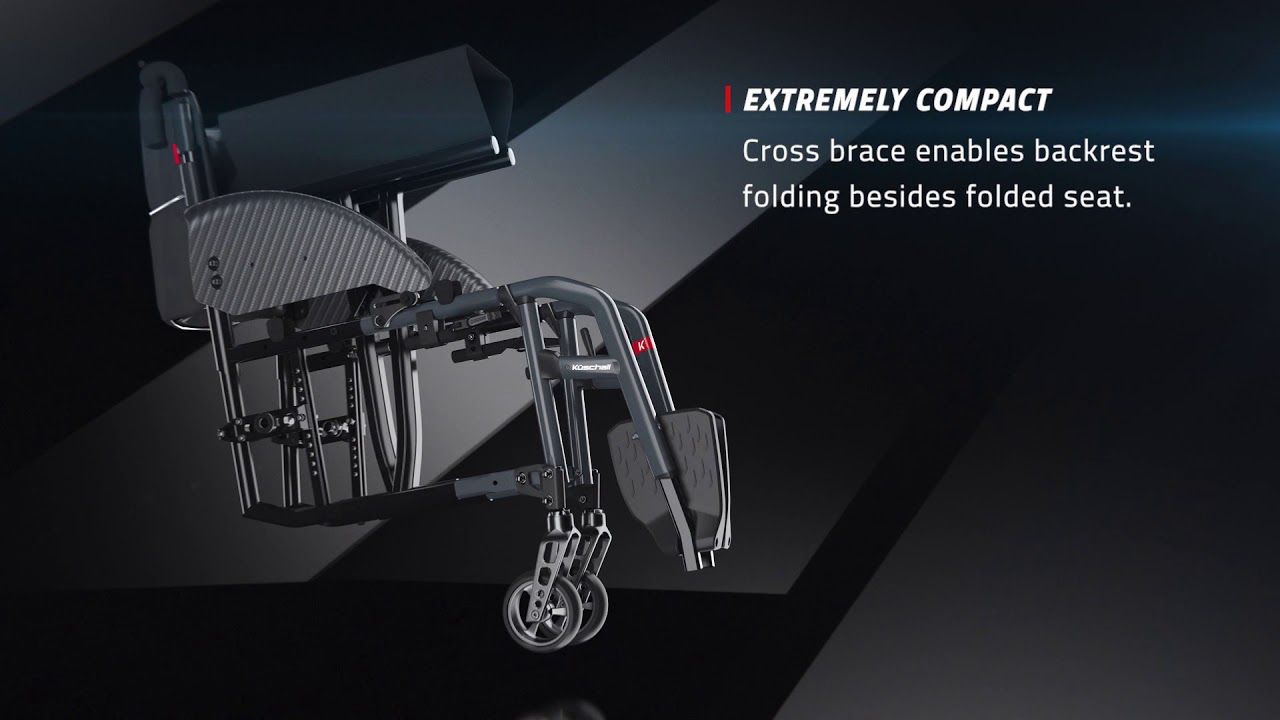

 Cross Brace küschall Compact manual wheelchair
Cross Brace

Designed specifically for users with reduced strength and to support a higher weight without adding material to the frame tubes.

Customization küschall Compact manual wheelchair
Customization

Unparalleled concept, achieved through the combination of modern frame painting with elegant decals in different shapes and colors. The result is an aesthetically unique wheelchair.

One Solution
One solution

Bringing together some of our very best wheelchair and seating brands to create winning combinations. Recommended by healthcare professionals and available as one order and one delivery.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Award-winning 3D Visualizer
Configure your new Küschall down to the last detail.
Watch your new Küschall wheelchair take shape, configure it the smallest details and have fun, the power is in your hands.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

280 – 500 mm in increments of 20 mm

Seat depth

Seat depth

320 – 500 mm in increments of 20 mm

Seat height

Seat height

front: 370 – 530 mm; rear: 360 – 500 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

200 – 510 mm in increments of 10 mm

Backrest angle

Backrest angle

82° / 86° / 90° / 94° /  98° / 102 °

Backrest height

Backrest height

300 – 510 mm in increments of 15 mm

Front frame angle

Front frame angle

70° / 80° straight or tapered

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 180 mm

Total width folded

Total width folded

approx. 290 mm

Total length

Total length

70°:approx. 870 – 1220 mm; 80°: approx. 850 – 1200 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

130 kg

Total weight

Total weight

approx. 9.6 kg

Transport weight

Transport weight

approx. 6.7 kg

Frame colour

Frame colour

SPACE BLACK,ANTHRACITE GREY,PURE WHITE,CARMINE RED,AZURE BLUE,BLACK GLOSSY,FERRITE,SLATE METALLIC,SILVER GREY,ROYAL BLUE,RUBY RED,SMOKY GREY,DYNAMITE ORANGE,FOREST GREEN,
