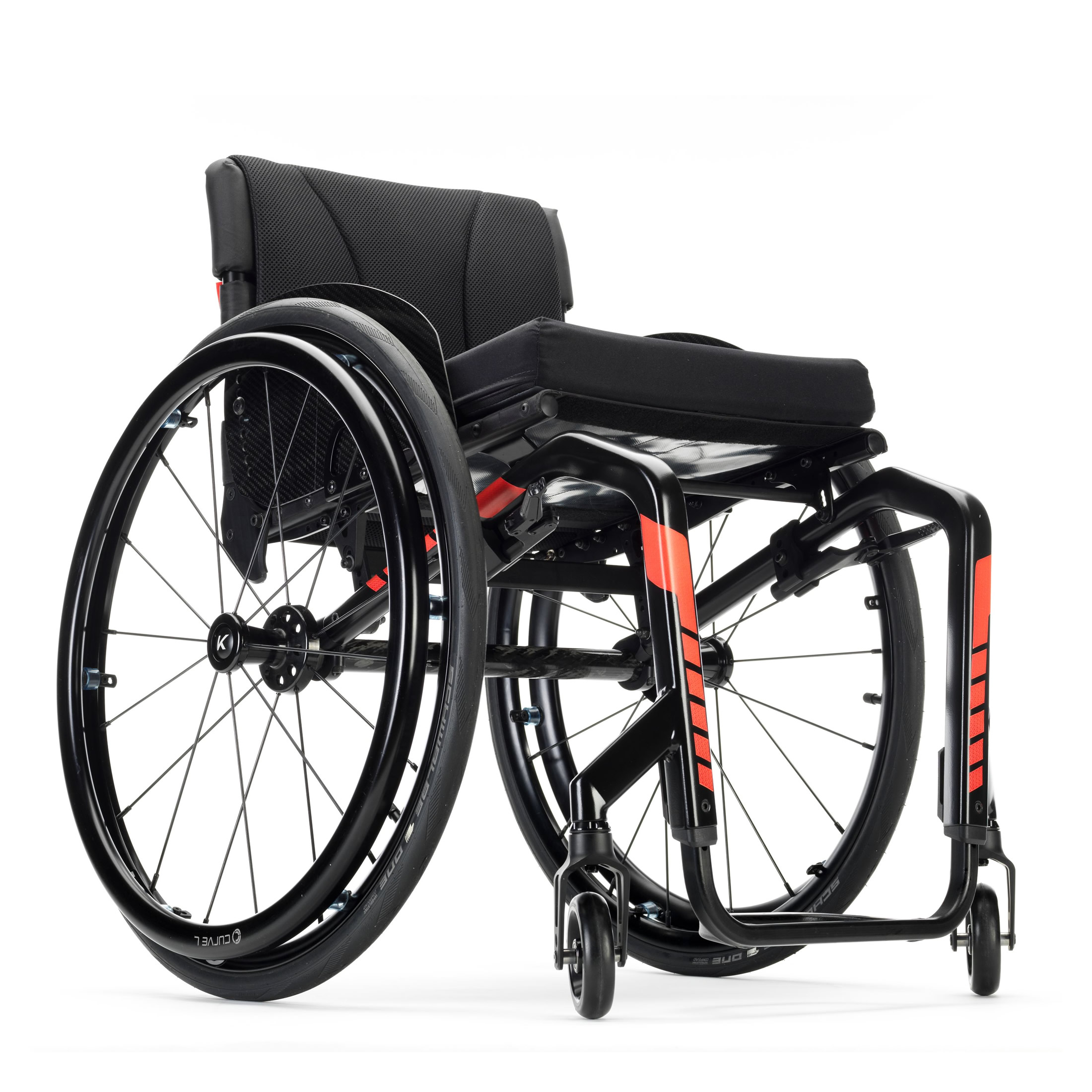

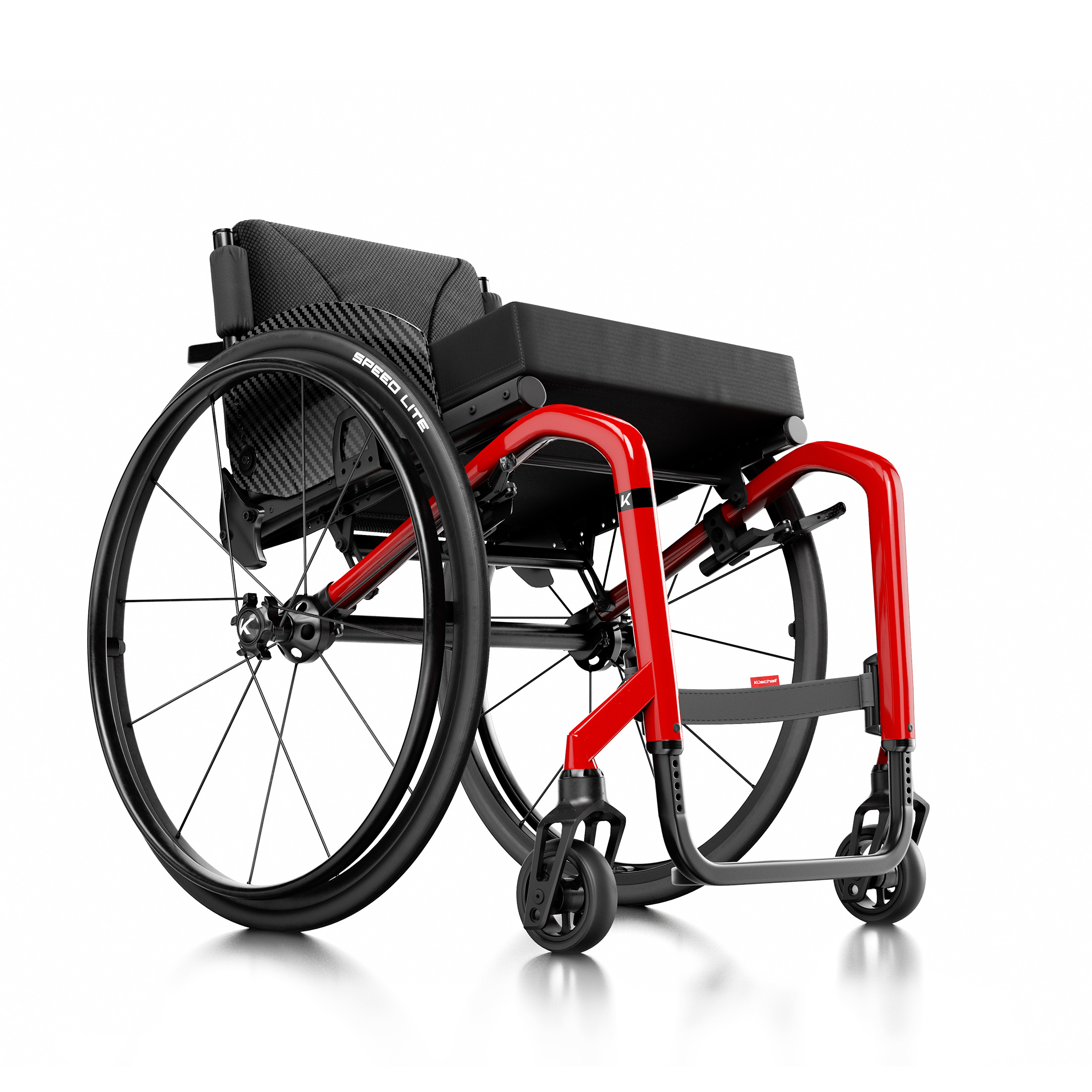

The Invacare Küschall K-series combines versatility, performance and design. It has an easily adjustable structure; it is lightweight and features a stylish design. Users that love aesthetics would also find the Küschall K-series as the perfect fit – It combines both aesthetics and functionality.

The seat module is another feature to look out for in this manual wheelchair. The seated module is independent of the frame and allows you to change your seating set-up anytime, anywhere.

The Küschall K-series also features an ergonomic backrest brace that enables more grips and less lifting effort (thanks to the new sleek hydroformed backrest brace).

Küschall K-series is simply a cleverly designed wheelchair engineered to adapt to the changing elements in your daily life. Below are some key features of the Küschall K-series:

  • Quick and easy folding:  The lockdown folding backrest is height and angle adjustable. Easy folding with the perfect open-frame design ensures effortless car transfers.

  • Hydroforming: Hydroforming technology is integrated into the Küschall K-series, which gives the wheelchair a modern look, reflecting new trends in the market landscape

  • Ergonomic backrest brace: It features an Ergonomic backrest brace that enables more grips and less lifting effort.

  • Versatile seat module: It features a versatile seat module that can be easily modified independently from the frame, and it’s fully adjustable to fit users perfectly.

  • Available in four different colours: Küschall K-series is available in different colours. Users have options to pick from the one that appeals most to them.

  • Durability: It is designed with high-quality materials to last longer.

One Solution
One solution

Bringing together some of our very best wheelchair and seating brands to create winning combinations. Recommended by healthcare professionals and available as one order and one delivery.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Award-winning 3D Visualizer
Configure your new Küschall down to the last detail.
Watch your new Küschall wheelchair take shape, configure it the smallest details and have fun, the power is in your hands.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

320 – 500 mm in increments of 20 mm

Seat depth

Seat depth

350 – 525 mm in increments of 25 mm

Seat height

Seat height

front: 450 – 520 mm rear: 390 – 490 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

290 – 480 mm in increments of 10 mm

Backrest angle

Backrest angle

74° / 78° / 82° / 86° / 90° / 94°

Backrest height

Backrest height

270 – 480 mm in increments of 15 mm

Front frame angle

Front frame angle

75° / 90°

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 170 mm

Total length

Total length

75°: approx. 830 mm; 90°: approx. 760 mm

Max. safe slope

Max. safe slope

Centre of gravity

Centre of gravity

80 mm / 95 mm / 110 mm/ 125 mm / 140 mm

Max. User weight

Max. User weight

130 kg

Total weight

Total weight

approx. 7.9 kg

Transport weight

Transport weight

approx. 5.1 kg

Crash tested

Crash tested

Frame colour

Frame colour

SPACE BLACK,ANTHRACITE GREY,PURE WHITE,CARMINE RED,AZURE BLUE,BLACK GLOSSY,FERRITE,SLATE METALLIC,SILVER GREY,ROYAL BLUE,RUBY RED,SMOKY GREY,DYNAMITE ORANGE,FOREST GREEN,
