Discontinued product Discontinued product

-

Backrest
Backrest

The KSL is available either with a fixed backrest welded to the angle of your choice or with a foldable backrest. The latter option offers easier transportation.

Frame
Frame

An optional tapered frame is available on The KSL.

Design
Design

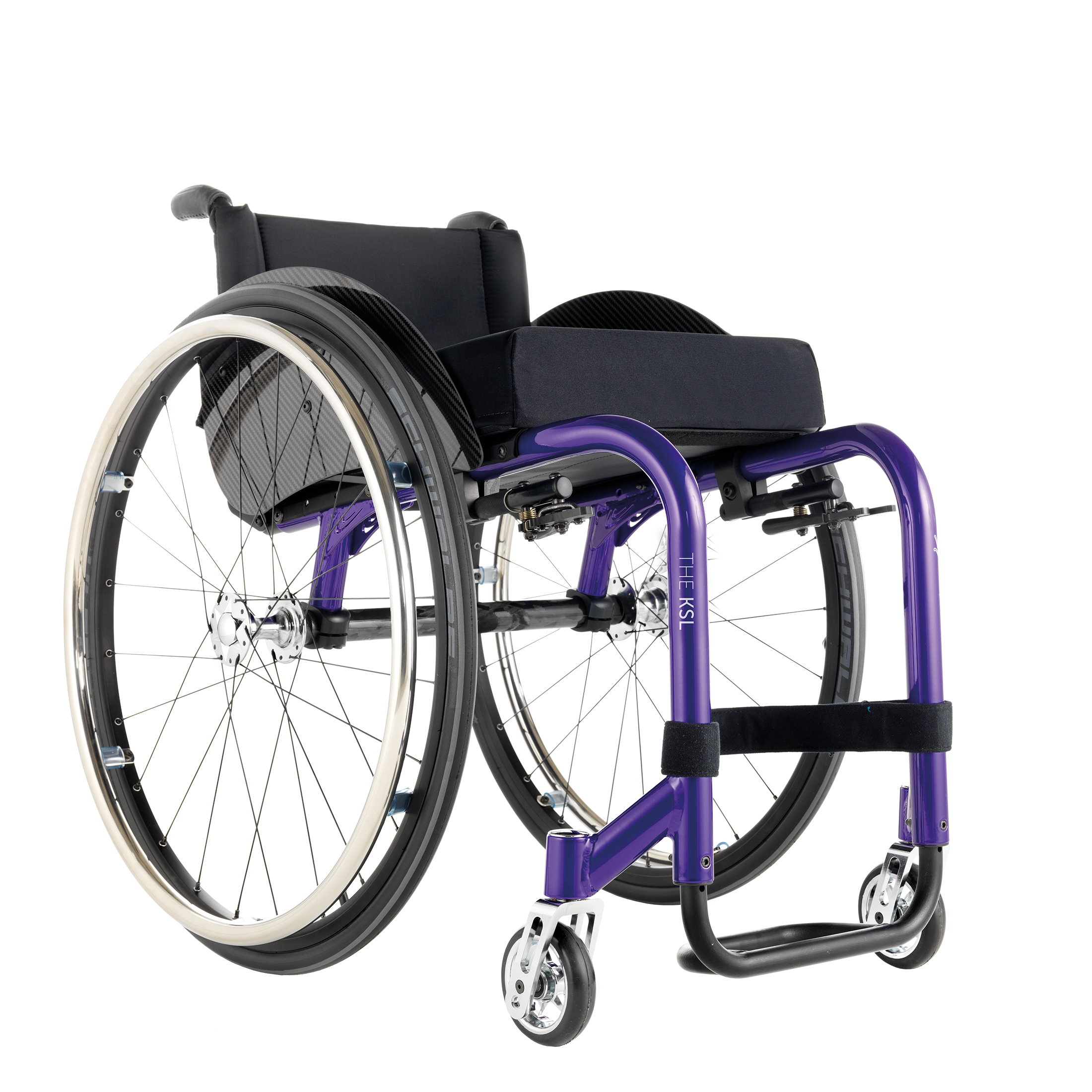

The minimal frame of The KSL combined with its sleek design elements not only make it one of the lightest wheelchairs on the market, but also give it an elegant designer aesthetic.

Backrest upholstery
Backrest upholstery

With a choice of four different backrest upholsteries (standard, light, tension Velcro® adjustable and Aero), The KSL offers a configuration to suit a range of postural requirements.

Lightweight
Lightweight

Lighter and more dynamic than any other Kuschall wheelchair, The KSL has only minor adjustments in the footrest and backrest upholstery, making it a truly lightweight, high performance, rigid wheel

Make it personal
Make it personal

Express your own individual style and flair with a range of customisation possibilities on The KSL. For that personal touch, a name or words of choice can be engraved on the castor housing cap.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

340 – 440 mm in increments of 20 mm

Seat depth

Seat depth

385 – 485 mm in increments of 25 mm

Seat height

Seat height

front: 450 – 530 mm rear: 400 – 480 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

350 – 500 mm in increments of 10 mm

Backrest angle

Backrest angle

74° / 78° / 82° / 86° / 90°

Backrest height

Backrest height

270 – 420 mm in increments of 15 mm

Front frame angle

Front frame angle

75° / 90° V-frame or tapered

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 170 mm

Total length

Total length

75°: approx. 800 mm; 90°: approx. 730 mm

Max. safe slope

Max. safe slope

Centre of gravity

Centre of gravity

80 mm / 95 mm / 110 mm/ 125 mm / 140 mm

Max. User weight

Max. User weight

100 kg

Total weight

Total weight

approx. 6.8 kg

Transport weight

Transport weight

approx. 4.3 kg

Frame colour

Frame colour

Smokey grey, Ivory white, Nitro pink, Black mat, Night shimmer, Mercury blue, Flashy yellow, Dynamite orange, Atomic violet, Glossy black, Silver grey, Royal red

Colour (other)

Colour (other)

B-Blue, Arctic blue, Olive, Techno-anthracite, Chrome, Champagne, Copper glaze, Comet red

Test & Certificates (1)
