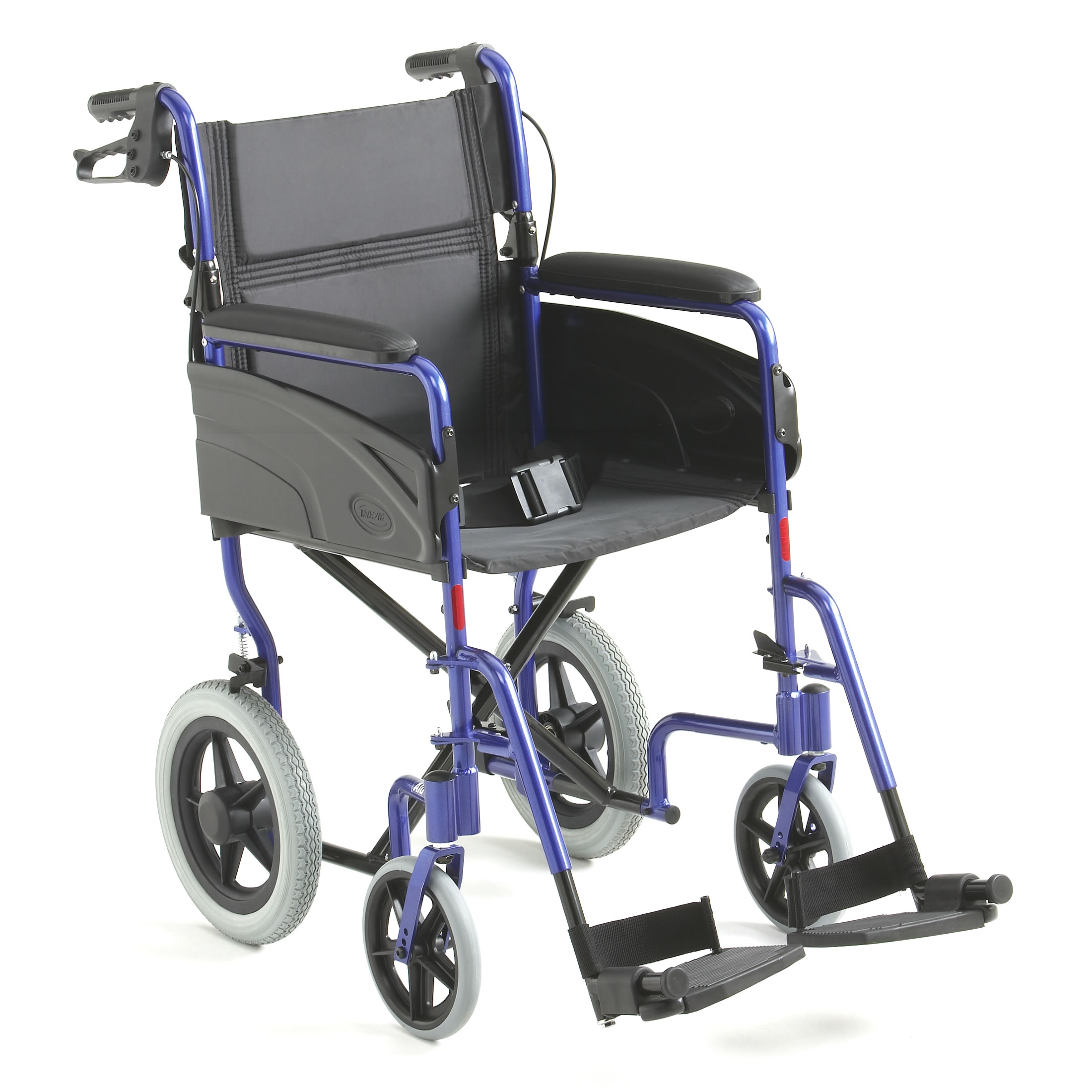

inspirational|ALUL BE02.jpg|Manual wheelchair Invacare Alu Lite

Alu lite by Invacare has arrived to change the perspective of a “typical” manual wheelchair.  Although it has a similar design, it has managed to preserve the best of traditional wheelchair’s features. This type of wheelchair is available as an assisted version, which means that it’s not self-propelled.

The backrest, like the seat of the chair, is foldable, so transport and protection of this equipment is easy and accessible. It will not be necessary to make a large space to carry this chair everywhere; also, to assemble it, you just have to stretch it so it can be used immediately.

Invacare Alu Lite Lifestyle
Invacare Alu Lite Lifestyle
Invacare Alu Lite Lifestyle

Finally, thanks to its compact design you can drive through narrow hallways without the need to change or reduce the structure of it. In Invacare we have thought about the needs of various patients and the levels of comfort they require, which is why we have developed the best distribution of components to create Alu Lite, the manual wheelchair that respects old structures but adds a modern and practical touch.

  • It is foldable: the structure of the seat is not rigid which makes it simple to fold. Easy to assemble and disassemble.
  • Special for assisted patients: this is one of the non-self-propelled chairs of the Invacare family, so it is aimed at a specific group of patients.
  • Lightweight chassis: its structure is completely light, so it reduces the effort of the person who helps the user.
  • Easy to transport: the lightness and structure of Alu Lite allows its transport to be really simple.
  • Ideal for tight spaces: because it is a simple design, it lacks extra structures that add volume, this makes Alu Lite ideal for small spaces and travelling.

Easy to maneuver: the structure gives stability and the wheels go in all directions without problems.

Folding backrest
Folding backrest

Reduces overall size when
folded for transportation
or storage.

Swing away footrest
Swing away footrest

Footplates fold up as
shown and footrests
swing away, allowing
easier access in or out of
the chair.

Foldable cross frame
Foldable cross frame

Lightweight frame folds
flat for easier portability.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

405 / 455 mm

Seat depth

Seat depth

430 mm

Seat angle

Seat angle

Seat height

Seat height

490 mm

Backrest angle

Backrest angle

Backrest height

Backrest height

450 mm

Front frame angle

Front frame angle

80°

Length of footrests

Length of footrests

340 - 460 mm

Armrest height

Armrest height

230 mm

Driving unit width

Driving unit width

Seat width + 110 mm

Total width folded

Total width folded

250 mm

Total length

Total length

1030 mm

Total length without footrests

Total length without footrests

760 mm

Total height

Total height

945 mm

Max. safe slope

Max. safe slope

12,5°

Turning diameter

Turning diameter

890 mm

Max. User weight

Max. User weight

100 kg

Total weight

Total weight

12 kg

The heaviest part

The heaviest part

10.2 kg

Frame colour

Frame colour

Blue

Colour (other)

Colour (other)

Black nylon
