inspirational|ACTION5 BE02.jpg|Manual wheelchair Invacare Myon HC

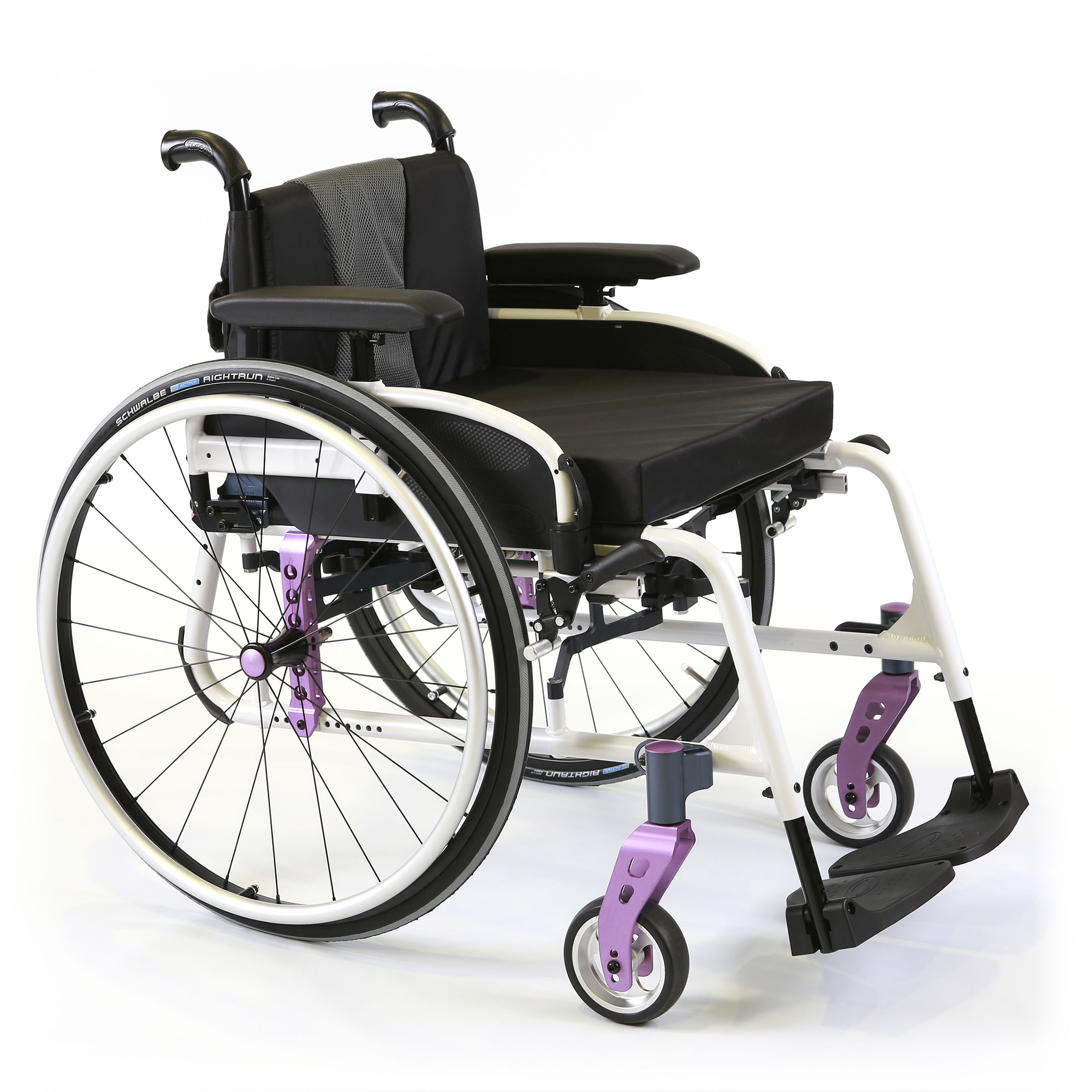

Invacare has designed the MyOn HC wheelchair seeking to create a wheelchair for users who want their chair to be easily folded for handling, storage and transport. This chair has been designed to provide a great driving performance.

The MyOn HC wheelchair by Invacare can be configured according to users’ needs, since it has two modalities - one of them offers a fixed frame for the column for greater support and the other facilitates its storage. The legrests are easily removable, in addition to that they can adapt to the different angles of the human body, from 70 °, 80 ° and up to 90 ° to give the user greater comfort. This manual wheelchair is made of a highly resistant and durable material at the top that prevents any damage.

cover|ACTION5 CV03.jpg|Manual wheelchair Invacare MyOn HC rigid black frame
cover|ACTION5 OF01.jpg|Manual wheelchair Invacare MyOn HC folded backrest yellow frame
cover|ACTION5 OF02.jpg|Manual wheelchair Invacare MyOn HC folded backrest yellow frame
benefit|ACTION5 BE03.jpg|Manual wheelchair Invacare MyOn HC
benefit|ACTION5 BE04.jpg|Manual wheelchair MyOn HC
benefit|ACTION5 BE05.jpg|Manual wheelchair Invacare MyOn HC
cover|ACTION5 OF02.jpg|Manual wheelchair Invacare MyOn HC folded backrest
cover|ACTION5 OF45.jpg|Manual wheelchair Invacare MyOn HC seat depth adjustability
cover|ACTION5 CV03.jpg|Manual wheelchair Invacare MyOn HC rigid black frame
cover|ACTION5 OF01.jpg|Manual wheelchair Invacare MyOn HC folded backrest yellow frame
cover|ACTION5 OF02.jpg|Manual wheelchair Invacare MyOn HC folded backrest yellow frame
benefit|ACTION5 BE03.jpg|Manual wheelchair Invacare MyOn HC
benefit|ACTION5 BE04.jpg|Manual wheelchair MyOn HC
benefit|ACTION5 BE05.jpg|Manual wheelchair Invacare MyOn HC
cover|ACTION5 OF02.jpg|Manual wheelchair Invacare MyOn HC folded backrest
cover|ACTION5 OF45.jpg|Manual wheelchair Invacare MyOn HC seat depth adjustability
cover|ACTION5 CV03.jpg|Manual wheelchair Invacare MyOn HC rigid black frame
cover|ACTION5 OF01.jpg|Manual wheelchair Invacare MyOn HC folded backrest yellow frame
cover|ACTION5 OF02.jpg|Manual wheelchair Invacare MyOn HC folded backrest yellow frame
benefit|ACTION5 BE03.jpg|Manual wheelchair Invacare MyOn HC
benefit|ACTION5 BE04.jpg|Manual wheelchair MyOn HC
benefit|ACTION5 BE05.jpg|Manual wheelchair Invacare MyOn HC
cover|ACTION5 OF02.jpg|Manual wheelchair Invacare MyOn HC folded backrest
cover|ACTION5 OF45.jpg|Manual wheelchair Invacare MyOn HC seat depth adjustability

The armrests of the MyOn HC are easily removable. This chair reduces back damage and prevents injuries such as bedsores thanks to its anti-bedsores pad.

  • Single folding mechanism: the MyOn HC can be configured according to users’ needs.
  • Fast and continuous adjustment: users will enjoy  can live his life and be assured that the chair will help him at all times.
  • Customisable: wide variety of colours available.
  • Removable armrests: quick to remove.
  • Removable legrests: user can remove the legrests with great ease.

Stability of a rigid chair that will prevent back pain and injuries like bedsores.

Fixed front
Fixed front

An 80° fixed front frame is available for the more independent users.

Selection of legrest options
Selection of legrest options

Choose from 70, 80 or 90° leg rests, elevating legrests, or an amputee support.

Tension and depth adjustable seat
Tension and depth adjustable seat

Adjustments can be made via easy to use straps.

Centre of gravity
Centre of gravity

100 mm centre of gravity adjustments can be made in 25 mm increments which can even be fine-tuned to 12 mm.

Camber
Camber

Standard adjustments of 0-2° available with the option of 3 & 4° adjustments if required.

Swing away legrests
Swing away legrests

Allows the leg rests to swing either inwards or outwards.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Seat width

Seat width

305 / 330 / 355 / 380 / 405 / 430 / 455 / 480 / 505 / 530 mm

Seat depth

Seat depth

350 / 375 / 400 / 425 / 450 / 475 / 500 mm

Seat angle

Seat angle

0 - 9 °

Seat height

Seat height

360-535 mm in steps of 25 mm / Rear seat height: 360-510 mm in steps of 25 mm

Backrest angle

Backrest angle

Fixed 90° Or stepless 90° -15°/+15°

Backrest height

Backrest height

Fixed 300 /325 / 350 / 400 / 425 / 450 / 475 / 500 mm / Adjustable 360-400 and 410-490 mm

Front frame angle

Front frame angle

Fixed front 80° / Swing away legrest 70° / 80° & 90° / Elevating legrest 0-80°

Length of footrests

Length of footrests

Swing away frame: 200-510 mm / Fixed frame: 300-530 mm

Armrest height

Armrest height

150-265 mm / 205-280 mm / 250-375 mm

Driving unit width

Driving unit width

Seat width +180 mm to seat width+ 250 mm

Total width folded

Total width folded

MyOn HC: 320 - 380 mm

Total length

Total length

845 - 1205 mm

Total length without footrests

Total length without footrests

670 -860 mm

Total height

Total height

701 -1108 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

100 & 130 kg

Total weight

Total weight

MyOn HC: from 12.3 kg / MyOn Rigid: from 10.8 kg

The heaviest part

The heaviest part

MyOn HC: from 8.3 kg / MyOn Rigid: 6.8 kg

Frame colour

Frame colour

Dark Red, Pop Blue, Anthracite Black, Pearl White, Electric Green, Hypnotic Purple, Pearl Grey, Matt Black, Intense Yellow, Vibrating Orange

Colour (other)

Colour (other)

Colour accents: Silver, Blue, Purple

Colour (other)

Comment

1. Overall dimensions In some configurations, overall width or length exceed the authorised limits with access to emergency escape routes not possible, 2. Stability values: Max. slope parking brake = 7° Static stability downhill = 14°-21° Static stability uphill = 9.4°-25.5° Static stability sideways = 20°-24°, 3. Radius Mini turning radius = 625 mm Pivot width = 1050-1180 mm, 4. Folded dimensions (MyOnHC) Folded height = 450-720 mm Folded depth = 620-1020 mm Folded width = 320-380 mm
