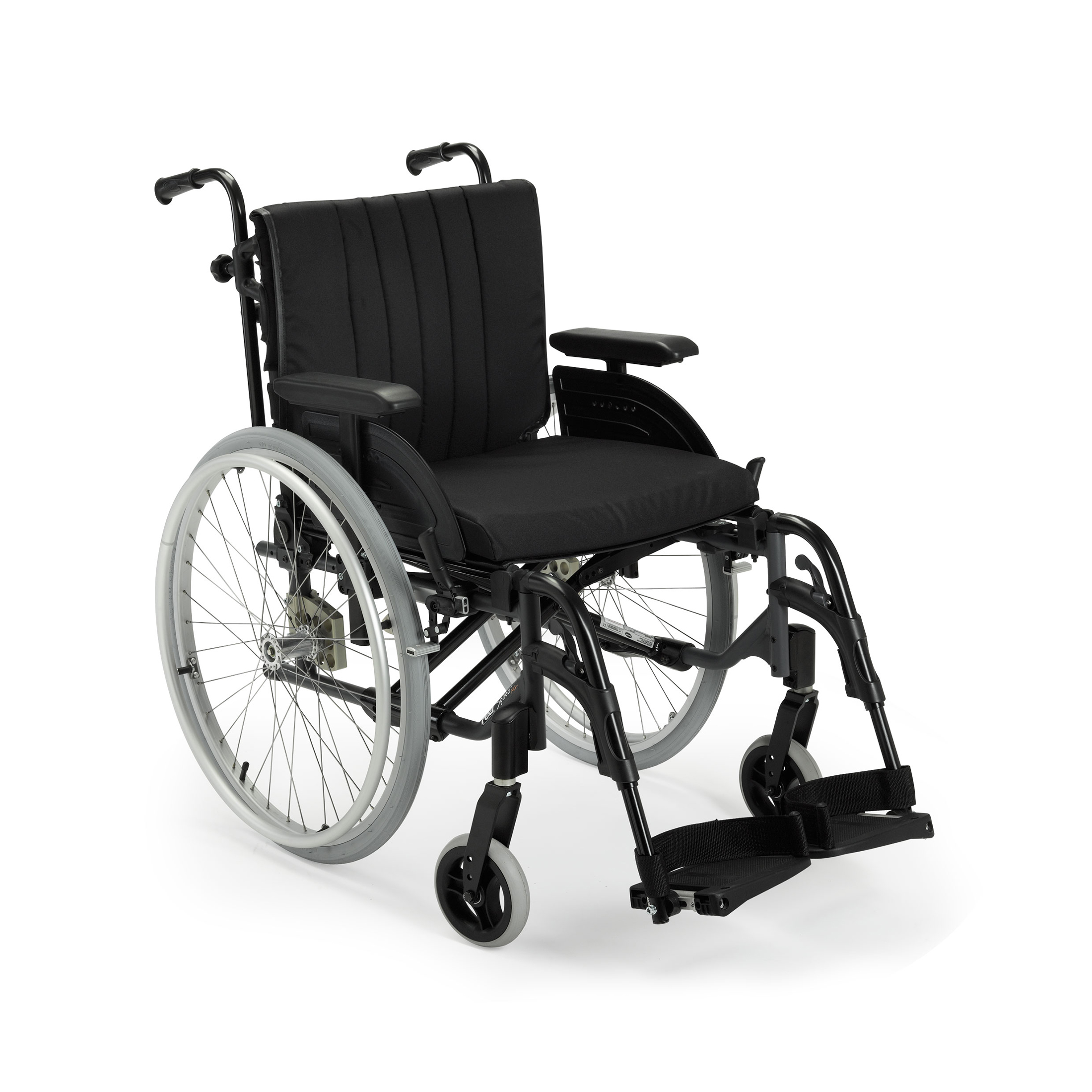

inspirational|SPIREA4NG BE04.jpg|Manual wheelchair Invacare Re Spirea 4 NG

Rea Spirea 4 NG by Invacare is furnished with outstanding features to meet the needs of various users. With its dynamic, durable, and lightweight buildup, the Invacare Rea Spirea 4 NG stands out as the ideal manual wheelchair for everyday use. Features such as light handling, minimal adjustment requirements, high technical quality and low maintenance, makes it the perfect choice for users, carers and engineers alike.

The Rea Spirea 4 NG ensures ease of movement. It comes with the unique design principles of the Spirea Family underpin – the Rea Spirea 4 NG wheelchair construction, which makes wheeling and self-propulsion effortless. Height-adjustable push handles and rear-wheel position adjustment enhance the easy manoeuvrability of the Spirea 4 NG while its solid chassis negates wheeling resistance.

benefit|SPIREA4NG BE06.jpg|Manual wheelchair Rea Spirea4 NG easy lift transportation
cover|SPIREA4NG OF01.jpg|Manual wheelchair Rea Spirea4 NG
cover|SPIREA4NG OF06.jpg|Manual wheelchair Rea Spirea4 NG
benefit|SPIREA4NG BE06.jpg|Manual wheelchair Rea Spirea4 NG easy lift transportation
cover|SPIREA4NG OF01.jpg|Manual wheelchair Rea Spirea4 NG
cover|SPIREA4NG OF06.jpg|Manual wheelchair Rea Spirea4 NG
benefit|SPIREA4NG BE06.jpg|Manual wheelchair Rea Spirea4 NG easy lift transportation
cover|SPIREA4NG OF01.jpg|Manual wheelchair Rea Spirea4 NG
cover|SPIREA4NG OF06.jpg|Manual wheelchair Rea Spirea4 NG

Users can also enjoy optimum manoeuvrability and stability as the wheelchair features frame construction, which has a unique cross-brace system affording dual-directional stability; a feature that demands less energy when propelling.

The Invacare Rea Spirea4 NG also features high modular compatibility and heavy-duty version. It has durable, high stability and low maintenance aluminum frame, which guarantees safety and durability of the wheelchair.

  • Backrest: It is equipped with an excellent backrest – the fixed 7° and the angle-adjustable backcanes can be easily mounted on the backrest attachment.
  • Foot propelling version: The optional 22" wheels give the Spirea 4NG a very low seat height, ideal for hemiplegic users and foot propelling.
  • Amputee support: It comes with a specially designed amputee support that is both practical and stable.
  • Camber:  It comes with two different built-in camber positions available without additional components. Easily reverse the bracket to achieve 0° and 2° camber.
  • Transit version: It has 16" rear wheels and assistant manoeuvred drum brakes for a practical transport version.

Anti-tippers: The Rea Spirea 4 NG features anti-tippers – the position and height of the anti-tippers can be adjusted to offer extra safety and prevention against tipping and trampling.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Seat width

Seat width

355 / 380 / 405 / 430 / 455 / 480 / 505 mm

Seat depth

Seat depth

400 / 450 / 500 mm (–50 mm)

Seat angle

Seat angle

0° / 3° / 6°

Seat height

Seat height

380 / 410 / 435 / 460 / 485 / 510 mm

Backrest angle

Backrest angle

7° / -6 - +13°

Backrest height

Backrest height

380 - 460 / 350 - 480 / 420 - 550 mm

Front frame angle

Front frame angle

80° / 0° - 80°

Length of footrests

Length of footrests

320 - 440 / 410 - 530 mm

Armrest height

Armrest height

190 - 290 mm

Driving unit width

Driving unit width

Seat width + 200 mm

Total width folded

Total width folded

305 mm

Total length

Total length

920 - 1170 mm

Total length without footrests

Total length without footrests

690 - 950 mm

Total height

Total height

720 - 1220 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

135 kg

Total weight

Total weight

16 kg

Transport weight

Transport weight

9.5 kg

Crash tested

Crash tested

Frame colour

Frame colour

Slate Grey

Colour (other)

Colour (other)

Black Jemima (TR18)
