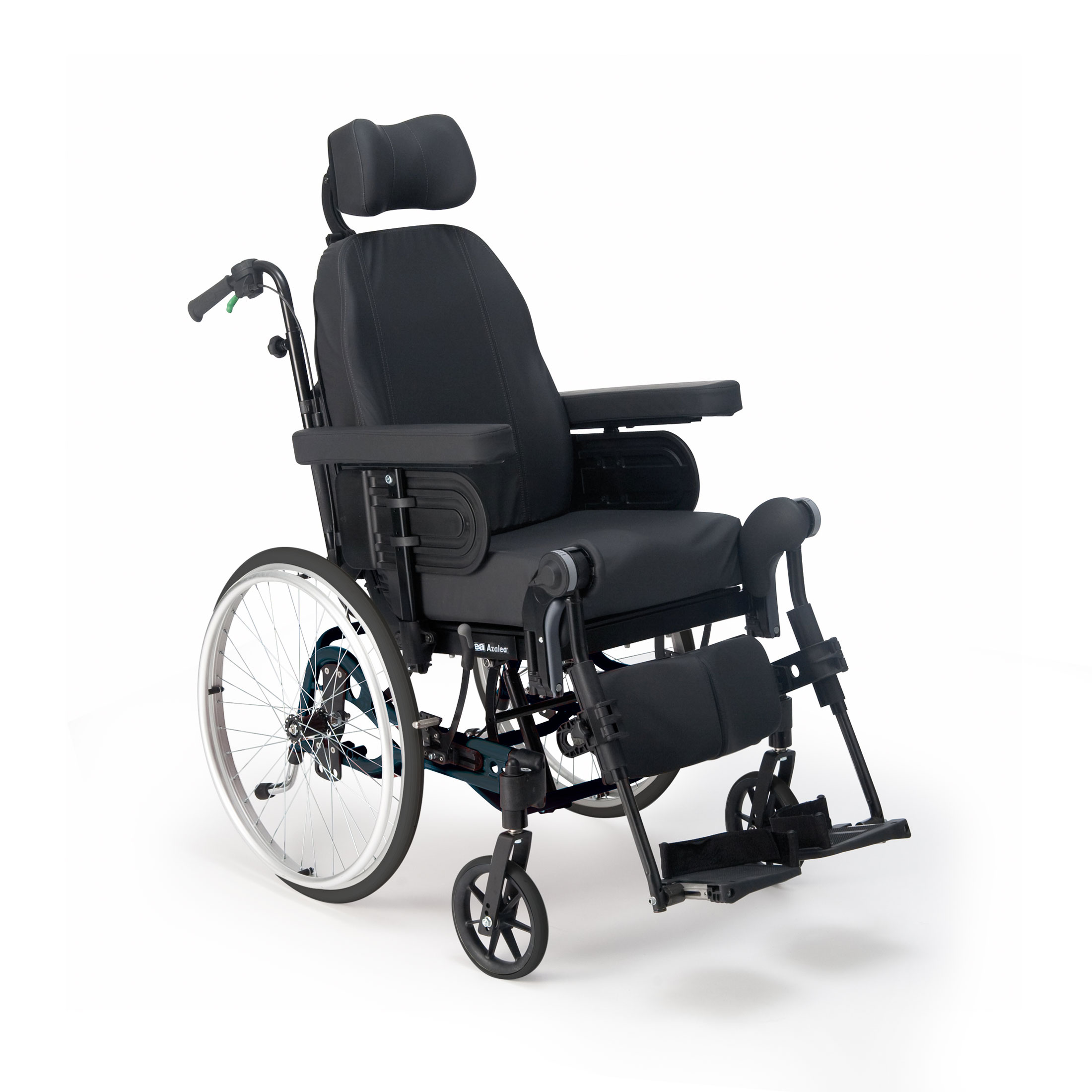

Manual wheelchair Rea Azalea mother and child..

Our Rea Azalea is the first choice for tilt-in-space wheelchairs, designed to manage all aspects of postural support and comfort.  The seating system is versatile with its wide choice of options and adjustments, including a choice between transit or self-propel rear wheels.  The Rea Azalea range comes in a variety of models to suit individual requirements and is a tried and trusted market leader in tilt-in-space wheelchairs.

Endless possible adjustments combined with multiple seating and positioning options, ensure the correct level of support and postural management can be achieved. Seating and positioning options are now available as one order. one delivery. one solution. Discover more in our interactive brochure.

Rea Azalea
Rea Azalea
Rea Azalea with seat cushion and positioning belt
Rea Azalea armrest option
Rea Azalea lateral option
one solution rea
Rea Azalea
Rea Azalea
Rea Azalea with seat cushion and positioning belt
Rea Azalea armrest option
Rea Azalea lateral option
one solution rea
Rea Azalea
Rea Azalea
Rea Azalea with seat cushion and positioning belt
Rea Azalea armrest option
Rea Azalea lateral option
one solution rea

Designed to accommodate a range of positioning requirements, both tilt and recline are easily adjusted by attendant gas pistons for light and effortless positioning. An optional electric controlled version offers independent control of posture and comfort.

Delivering increased stability, safety, and confidence for the client, with our unique DSS (Dual Stability System) built into every wheelchair.  When tilting and reclining, the seating system moves forward and down inside the frame. This weight shifting guarantees exceptional stability is maintained, even when in full tilt and recline.  The pivot points of the Rea Azalea match the natural pivot points of the client for synchronised movement between the body and the wheelchair, reducing the risk of sheer and pressure.

Key features

  • Flex 3, Backrest Plate: Sturdy and adaptable, the Flex 3 backrest plate provides support, with both width and height adjustment. Available with a range of postural support cushions
  • Flex 3, tension adjustable backrest: Built to accommodate more complex spinal shapes, it offers multiple adjustments suitable for all body shapes and sizes. Available with a padded cover to compliment the contours of the tension straps or a range of postural support cushions.
  • Wide range of options: In addition to the multiple adjustments in the chair, the Azalea boasts a large assortment of options and accessories, guaranteeing a solution for a wide range of postural challenges.
  • Seat tilt and Backrest recline: The Rea Azalea features 25°of seat tilt and 30° of backrest recline to support a range of positioning requirements.
  • Rear wheels: Transit wheels are available for attendant propulsion, or a variety of self-propel wheels are possible for the moderately active individual.



One Solution
One solution

Bringing together some of our very best wheelchair and seating brands to create winning combinations. Recommended by healthcare professionals and available as one order and one delivery.

Dual Stability System (DSS)
Dual Stability System (DSS)

Increased performance of the tilt function offers superb pressure redistribution and reduces shear forces.

Flex 3 back support
Flex 3 back support

Sturdy and adaptable. Available with a range of postural support cushions.

Wide range of options
Wide range of options

Customise and adapt the wheelchair as required for appropriate support, depending on the evolution of the patient’s condition.

Electric Tilt controller
Electric tilt option

Offers independent control of posture, comfort and weight shifting capability.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Rea Options Tool
Rea Options Tool
Configure your
Rea wheelchair
View the options and possibilities
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

390-440 / 440-490 / 490-540 (390-490 / 440-540 / 490-590 mm)

Seat depth

Seat depth

430 - 500 mm

Seat angle

Seat angle

-1° to 23° (+1° to 25°)

Seat height

Seat height

400 / 450 mm

Backrest angle

Backrest angle

0° - 30°

Backrest height

Backrest height

Backrest plate: 560-790 mm / Tension adjustable backrest: 540-715 mm

Length of footrests

Length of footrests

330 - 627 mm

Armrest height

Armrest height

240 - 360 mm

Driving unit width

Driving unit width

SW + 220 mm (SW + 230 mm)

Total length inc. footrests

Total length inc. footrests

950 - 1035 mm

Total height

Total height

900-1250 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

Max 135 kg

Total weight

Total weight

34 kg (SW 440 mm)

Transport weight

Transport weight

16.5 kg (1)

Crash tested

Crash tested

Frame colour

Frame colour

Pearl Grey, Azurite Blue, Sand, Happy Red, Electric Green

Colour (other)

Colour (other)

Black Dartex TR26, Black plush TR35, Black spacer TR36

Colour (other)

Comment

Crash tested to ISO 7176-19

(1) Transport weight increases with 4,2 Kg when the Power tilt & Recline option is used
