MPIC015622

Multi Adjustable

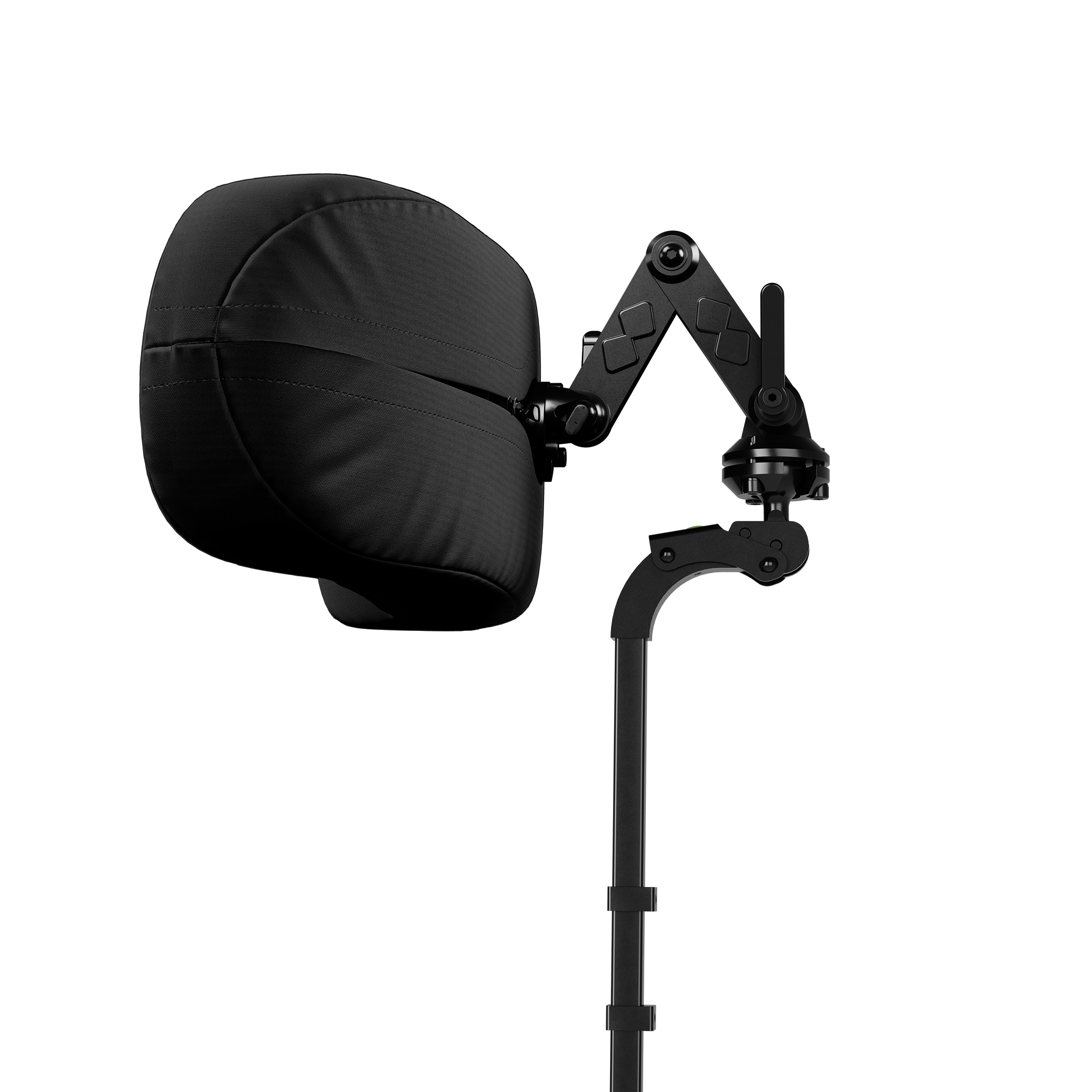

Introducing Matrx® Elan, our compact and lightweight headrest with extremely adjustable hardware for our highest range of support and comfort. The Award-winning design with 6 adjustment points is our most adjustable hardware yet offering a solution for the widest range of applications.

Matrx Elan adjustments
Matrx Elan hardware with head pad
Matrx Elan slightly extended
Matrx Elan moderately extended
Matrx Elan fully extended
Matrx Elan offset position
Matrx Mini back with model
Matrx Elan headpad
Headpad being formed into desired shape
Wheelchair headrest Elan Matrx
Matrx Elan adjustments
Matrx Elan hardware with head pad
Matrx Elan slightly extended
Matrx Elan moderately extended
Matrx Elan fully extended
Matrx Elan offset position
Matrx Mini back with model
Matrx Elan headpad
Headpad being formed into desired shape
Wheelchair headrest Elan Matrx
Matrx Elan adjustments
Matrx Elan hardware with head pad
Matrx Elan slightly extended
Matrx Elan moderately extended
Matrx Elan fully extended
Matrx Elan offset position
Matrx Mini back with model
Matrx Elan headpad
Headpad being formed into desired shape
Wheelchair headrest Elan Matrx

Matrx headrests provide bespoke and effective postural support so that people can achieve optimal functionality and experience an enhanced quality of life. We believe in creating the right support first time, which is why our headrests are designed with simple and highly configurable hardware options and can be combined with a range of supportive and pressure relieving headrest pads.

Key features

  • 6 adjustment points: innovative hardware can cater for more complex needs including extreme kyphosis
  • Adjustment levers: easy position changes
  • Attachment knob: for easy removal or height adjustment
  • Swing away function: for easy transfers and daily living activities
  • Extended hardware option: available for reaching more severe kyphosis postures – includes an extra link
  • 2 post options: Standard (380mm) and mini (280mm) to complement paediatric to adult applications
  • Curved vertical post: for lateral or forward mounting positions

Headpad options

Highly comfortable headpads with dual density foam provides immersion and prevents bottoming out, while the aluminium plates can be formed to desired shape.

Choose from:

  • Occipital: supports the occipital and sub-occipital areas of the head. Available in two sizes.
  • Ellipse: provides posterior and lateral support. Available in three sizes.
  • 4 point: supports occipital and temporal areas of the head. Available in two sizes.
Versatile
Versatile

Innovative hardware offers numerous positioning capability for more complex needs including more extreme kyphosis as well as swing away function for easier transfers.

Strong hold
Strong hold

This crash tested design, has an innovative, multi-disc locking feature that provides significant and reliable holding strength.

Easy set up
Easy set up

Set up quickly and effectively with a single Allen key, while the adjustment levers make it easy to change the position.

Matrx FLIPP
Matrx FLIPP

Optional flip back option to temporarily move the headrest out of the way without affecting the original settings or detach from the wheelchair.

Matrx HUG
Matrx HUG

Optional HUG cushion insert with soft, comfortable Stamina Fibre. For extra immersion, envelopment and enhanced comfort.

Headpads
Headpads

Occipital, Ellipse or 4 point headpad options. Available in various sizes – see brochure for further details.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Size

Size

See brochure for detailed information.

Depth adjustment

Depth adjustment

260mm

Cover options

Cover options

Startex and Infection control: black

Cover options

Comment

Headpad options:

Ellipse Pad

Small 150x90mm, Medium 250x130mm, Large 360x130mm

Occipital Pad

Small 230x180mm, Large 310x200mm

4 Point Pad

Small 290mmx180mm, Large 280x260mm

Test & Certificates (1)
