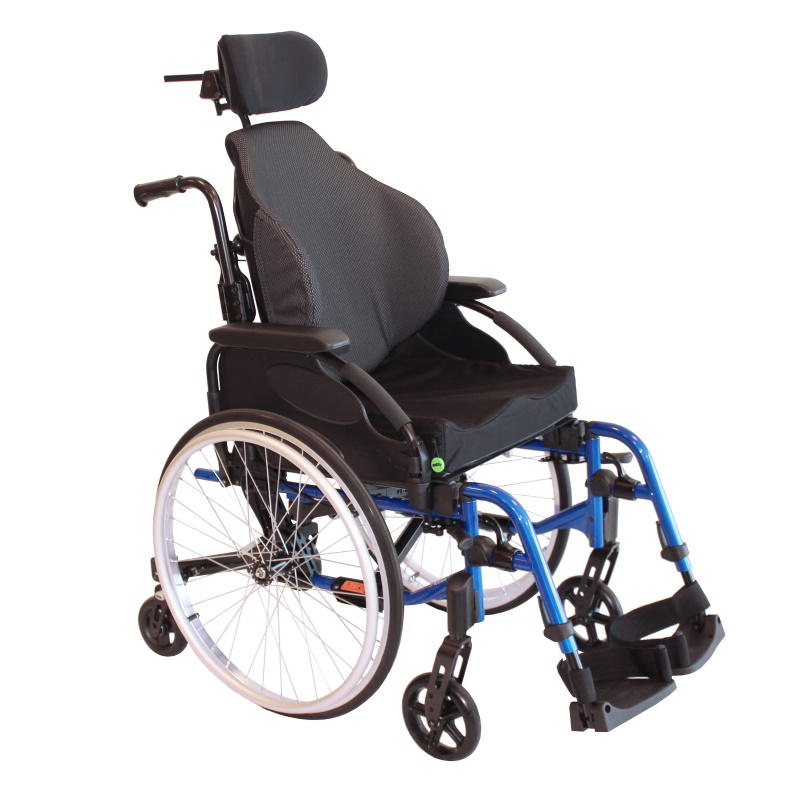

The Invacare Action 3NG Rocking Chair  modular seat wheelchair is a folding 6-wheel wheelchair with an aluminum cross-brace featuring a mechanical seat tilt of 25°. The central position of its drive wheels enables better access to the handrails. Its design provides a more natural position for the upper limbs and optimizes the necessary propulsion force.

Its turning radius is shorter than a standard 4-wheel chair, ideal for indoor use. Its 25° mechanical seat tilt provides a resting position accessible all day long and enables pressure points to be varied. It can be operated by the user or by a third party and locked using a system of stops. The non-removable articulated rear supports guarantee user safety in all circumstances.

Its total weight remains under control: from 17.6 kg, i.e. only 3.4 kg heavier than an Action 3NG with the same set-up, and the overall widths are the same as those of an Action 3NG. This version offers as standard a Matrx Elite positioning backrest with a curve of 80 mm or an Elite Deep backrest with a curve of 160 mm and a seat cushion of your choice such as: Classic Visco, Matrx Vi or Libra and many others. It is compatible with the other members of the Action family.

ONE SOLUTION* - Action, Matrx and Bodypoint: discover a comprehensive solution* by clicking here.

6-wheel chair design
6-wheel chair design

Better weight distribution between the wheels thereby improving its handling. Better access to the handrails to facilitate its propulsion. Shorter turning radius than a standard wheelchair.

Resting position accessible at any time
Resting position accessible at any time

To tilt the wheelchair themselves, the user has to push the handrails from back to front. It can be deactivated using a system of stops accessible to the user and a third party.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

380 / 405 / 430 / 455 / 480 / 505 mm

Seat depth

Seat depth

400 / 450 mm

Seat angle

Seat angle

3° to 28°

Seat height

Seat height

460 / 485 mm

Backrest angle

Backrest angle

7 ° / 0° - 30° / -15° - +15°

Backrest height

Backrest height

350 - 510 mm

Front frame angle

Front frame angle

80° / 0 - 75°

Length of footrests

Length of footrests

200- 400 / 330 - 460 / 440 - 510 mm

Armrest height

Armrest height

230 / 170 - 295 mm

Total width

Total width

Seat width + 190 mm

Total width folded

Total width folded

295 mm

Total length inc. footrests

Total length inc. footrests

1036 - 1124 mm

Total length without footrests

Total length without footrests

816 - 890 mm

Total height

Total height

810 - 1040 mm

Max. safe slope

Max. safe slope

Centre of gravity

Centre of gravity

800 mm

Max. User weight

Max. User weight

125 kg

Total weight

Total weight

17,6 kg

Transport weight

Transport weight

11,2 kg

Crash tested

Crash tested

Test & Certificates (1)
