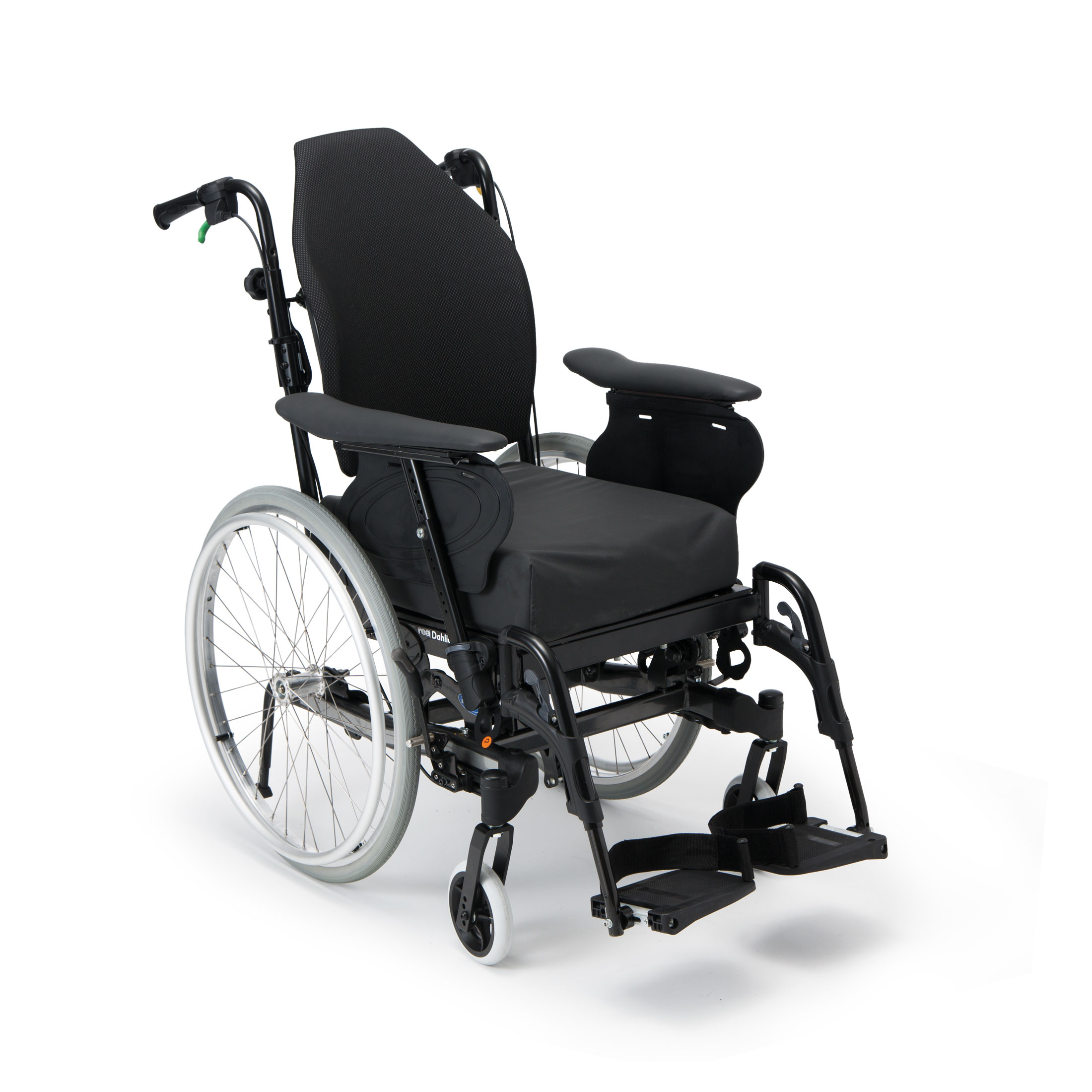

A myriad of benefits all in one. The Matrx Dahlia 30° Manual Positioning Wheelchair is designed for users with pressure relief needs. Tilting is made easy thanks to the smooth mechanisms at the pneumatic cylinders, which require little effort. This modular seat wheelchair is very easy to handle and has a small footprint thanks to its compact chassis.

Individualized seat height adjustment
Individualized seat height adjustment
Low seat to floor height gives the user the possibility to foot propel, Dahlia brinks a large range of adjustment from 325 to 505 mm to meet user requirements.
Dahlia in full recline
Light tilt movement
Carer is able to tilt easily with minimum effort. The manual wheelchair Rea Dahlia 45 includes a push up spring making it easier for the chair to come up from a tilted position. Dahlia 30 offers self-tilt as an option. A power tilt and recline option is also available.
One Solution
One solution
Bringing together some of our very best wheelchair and seating brands to create winning combinations. Recommended by healthcare professionals and available as one order and one delivery.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

390-440/440-490/490-540 mm 16" (390-490/440-540/490-590 mm)

Seat depth

Seat depth

430 - 500 mm

Seat height

Seat height

30° 330-500 mm | 45° 350 - 500mm

Backrest angle

Backrest angle

0° - 30°

Backrest height

Backrest height

500 - 800 mm (without cushion)

Front frame angle

Front frame angle

30° : -1 - 30° | 45° : 0-45°

Length of footrests

Length of footrests

330 - 667 mm

Armrest height

Armrest height

250 - 320 mm

Total width

Total width

Seat width + 160 mm (16") + 180 mm (24")

Total length inc. footrests

Total length inc. footrests

900 - 1195 mm

Total height

Total height

30° : 825 - 1250mm | 45° : 850 - 1250mm

Max. slope for use of parking brake

Max. slope for use of parking brake

Centre of gravity

Centre of gravity

755 mm

Max. User weight

Max. User weight

135 kg

Total weight

Total weight

< 35 kg¹

Transport weight

Transport weight

21/25 kg (seat width 39 cm)

Colour (other)

Colour (other)

Frame color: Black | Reflective strip color: Gray, Blue, Champagne, Red, Petrol green

Colour (other)

Comment

For more information on options and accessories, see the Dahlia Accessories brochure. 1. Total weight at 390mm seat width and in the lightest configuration. The power tilt option adds 4.2kg to the transport weight. 2. Component Cross-Compatibility: Many components are shared with other products in the Invacare Rea family.

Test & Certificates (1)
